Cub Cadet 2072

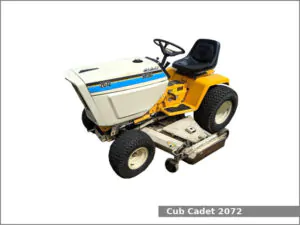

Cub Cadet 2072The Cub Cadet 2072 is a 2WD garden and lawn tractor manufactured by Cub Cadet (a part of MTD) in Brownsville, Tennessee, USA from 1987 to 1989. The Cub Cadet 2072 is equipped with a 0.8 L (47.0 cu·in) two-cylinder gasoline engine and a shaft-driven hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet 2072 garden tractor used the Kohler M20S engine. It is a 0.8 L, 770 cm2, (47.0 cu·in) two-cylinder natural aspirated gasoline engine with 79.0 mm (3.11 in) of the cylinder bore and 78.0 mm (3.07 in) of the piston stroke. This engine produced 20.3 PS (14.9 kW; 20.0 HP) of output power.

The Cub Cadet 2072 is equipped with power steering, dual disc brakes, open operator station, and 15.1 liters (4 US gal.; 3.3 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet 2072 garden tractor:

  • Mid-mount Cub Cadet 1,270 mm (50 in) mower deck with 3-blades and hydraulic lift
  • Mid-mount Cub Cadet 1,520 mm (60 in) mower deck with 3-blades and hydraulic lift
  • Front-mount Cub Cadet 1,370 mm (54 in) blade
  • Front-mount Cub Cadet 1,140 mm (45 in) two-stage snowblower

Cub Cadet 2072 Specifications

General Specifications
Model Cub Cadet 2072
Length 1,990 mm (78.3 in)
Width 1,100 mm (43.3 in)
Height 1,200 mm (47.2 in)
Wheel base 1,310 mm (51.6 in)
Ground clearance 190 mm (7.5 in)
Weight
Fuel tank capacity 15.1 liters (4 US gal.; 3.3 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Kohler M20S
Engine type Four-stroke, air-cooled
Cylinders 2
Fuel type Gasoline
Displacement 0.8 L, 770 cm2, (47.0 cu·in)
Bore and stroke 79.0 mm X 78.0 mm (3.11 in X 3.07 in)
Horsepower 20.3 PS (14.9 kW; 20.0 HP)
Starter Electric
Oil type SAE 10W-30, 30
Oil capacity: 1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Spark plug Chamption RBL-15Y
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes Dual disc
Transmission model
Transmission type Shaft-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 12.1 kmh (7.5 mph) Reverse: 6.4 (4 mph)
Transmission oil capacity 6.6 L (1.7 US. gal, 1.5 Imp. gal.)
Tires
Front tires Lawn/turf: 18×8.50-8
Rear tires Lawn/turf: 26×12.00-12
Three-Point Hitch
Category 0
Control type
Lift capacity (at ends)
