Yanmar YM1500

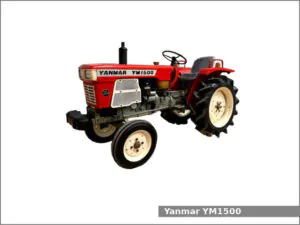

Yanmar YM1500The Yanmar YM1500 is a 2WD or 4WD (YM1500D) compact utility tractor manufactured by Yanmar from 1975 to 1979. The Yanmar YM1500 is equipped with a 0.9 L (52.1 cu·in) two-cylinder diesel engine and a gear type transmission with 8 forward and 2 reverse gears.

The Yanmar YM1500 compact utility tractor used the Yanmar 2TR15 engine. It is a 0.9 L, 854 cm2, (52.1 cu·in) two-cylinder natural aspirated diesel engine with 80.0 mm (3.15 in) of the cylinder bore and 85.0 mm (3.35 in) of the piston stroke. This engine produced 15.0 PS (11.2 kW; 15.0 HP) at 2,400 rpm of output power.

Yanmar YM1500 Specifications

Yanmar YM1500 Specifications

General Specifications
ModelYanmar YM1500
Length2,580 mm (101.6 in)
Width 2WD: 1,040 mm (40.9 in)
4WD: 1,050 mm (41.3 in)
Height 2WD: 1,755 mm (69.1 in)
4WD: 1,690 mm (66.5 in)
Wheel base–
Weight 2WD: 612 kg (1,349 lbs)
4WD: 680 kg (1,499 lbs)
Fuel tank capacity22.0 liters (5.8 US gal.; 4.8 Imp. gal)
Battery12V, 60Ah
Cabin typeOpen operator station
Engine
Engine modelYanmar 2TR15
Engine typeFour-stroke, liquid-cooled, inline
Cylinders2
Fuel typeDiesel
Displacement0.9 L, 854 cm2, (52.1 cu·in)
Bore and stroke80.0 mm X 85.0 mm (3.15 in X 3.35 in)
Horsepower15.0 PS (11.2 kW; 15.0 HP) at 2,400 rpm
StarterElectric
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering type–
Brakes–
Transmission model
Transmission typeGear type
Gears8 forward and 2 reverse
Speed Forward: 14.7 kmh (9.1 mph) Reverse: 5.6 (3.5 mph)
Tires
Front tires Ag: 4-12 (2WD), 5-14 (4WD)
Rear tires Ag: 8.3/8-22
Three-Point Hitch
CategoryI
Control type–
Lift capacity (at ends)648 kg (1,430 lbs)
Hydraulic system
Hydraulic typeOpen center
