Yanmar GT14

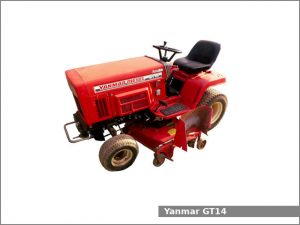

Yanmar GT14The Yanmar GT14 is a 2WD garden tractor manufactured by Yanmar from 1988 to 1990. The Yanmar GT14 is equipped with a 0.6 L (38.8 cu·in) two-cylinder diesel engine and a power shift transmission with 6 forward and 3 reverse gears.

The Yanmar GT14 garden tractor used the Yanmar 2T75U engine. It is a 0.6 L, 635 cm2, (38.8 cu·in) two-cylinder natural aspirated diesel engine with 75.0 mm (2.95 in) of the cylinder bore and 72.0 mm (2.83 in) of the piston stroke. This engine produced 14.1 PS (10.4 kW; 14.0 HP) at 2,600 rpm of output power.

Following attachments are available for the Yanmar GT14 garden tractor:

  • Mid-mount Yanmar 1,210 mm (48 in) mower deck
  • Mid-mount Yanmar 1,520 mm (60 in) mower deck

Yanmar GT14 Specifications

General Specifications
ModelYanmar GT14
Length
Width
Height
Wheel base
Weight
Fuel tank capacity
Battery12V
Cabin typeOpen operator station
Engine
Engine modelYanmar 2T75U
Engine typeFour-stroke, liquid-cooled
Cylinders2
Fuel typeDiesel
Displacement0.6 L, 635 cm2, (38.8 cu·in)
Bore and stroke75.0 mm X 72.0 mm (2.95 in X 2.83 in)
Horsepower14.1 PS (10.4 kW; 14.0 HP) at 2,600 rpm
StarterElectric
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
Brakes
Transmission model
Transmission typePower shift
Gears6 forward and 3 reverse
Tires
Front tires Lawn/turf: –
Rear tires Lawn/turf: –
Three-Point Hitch
Category0
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Front PTO typeIndependent with electric clutch
Front PTO speed
Rear PTO typeIndependent
Rear PTO speed2000 rpm
