Yanmar YM2210

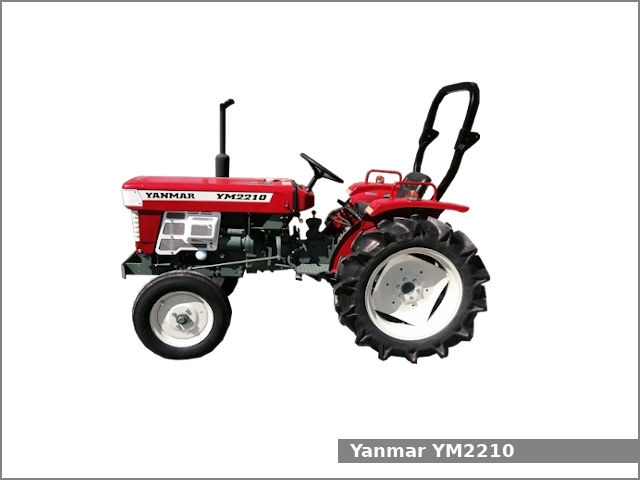

Yanmar YM2210The Yanmar YM2210 is a 2WD (YM2210) or 4WD (YM2210D) compact utility tractor from the YM10 series. This tractor was manufactured by Yanmar from 1977 to 1981. The Yanmar YM2210 is equipped with a 1.1 L (69.9 cu·in) two-cylinder diesel engine and a partial power shift transmission with 15 forward and 5 reverse gears.

The Yanmar YM2210 compact utility tractor used the Yanmar 2T90 engine. It is a 1.1 L, 1,145 cm2, (69.9 cu·in) two-cylinder natural aspirated diesel engine with 90.0 mm (3.54 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. This engine produced 22.0 PS (16.2 kW; 21.7 HP) at 2,600 rpm of PTO output power.

Yanmar YM2210 Specifications

General Specifications
ModelYanmar YM2210
Length2,780 mm (109.4 in)
Width1,160 mm (45.7 in)
Height1,840 mm (72.4 in)
Wheel base 2WD: 1,540 mm (60.6 in)
4WD: 1,600 mm (63 in)
Ground clearance 2WD: 360 mm (14.2 in)
4WD: 320 mm (12.6 in)
Weight 2WD: 950 kg (2,094 lbs)
4WD: 1,000 kg (2,205 lbs)
Fuel tank capacity23.8 liters (6.3 US gal.; 5.2 Imp. gal)
Battery12V
Cabin typeOpen operator station
Engine
Engine modelYanmar 2T90
Engine typeFour-stroke, liquid-cooled, inline
Cylinders2
Fuel typeDiesel
Displacement1.1 L, 1,145 cm2, (69.9 cu·in)
Bore and stroke90.0 mm X 90.0 mm (3.54 in X 3.54 in)
Horsepower22.0 PS (16.2 kW; 21.7 HP) at 2,600 rpm
StarterElectric
Transmission and chassis
Chassis4×2 2WD (YM2210) or 4×4 MFWD 4WD (YM2210D)
Steering type
Brakes
Transmission model
Transmission typePartial power shift
Gears15 forward and 5 reverse
Speed Forward: 14.1 kmh (8.8 mph) Reverse: 10.9 kmh (6.8 mph)
Tires
Front tires Ag: 4.00-15 (2WD), 6-14 (4WD)
Rear tires Ag: 9.5-24
Three-Point Hitch
CategoryI
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type
Rear PTO speed540 rpm
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.

2 Comments

  1. I have a Yanmar 2210. But mine has a 4 speed PTO. 500/700/900/1100 RPM. Im not sure if that’s normal ,or an option. Just thought I’d mention it. Thanks for all the great information.
