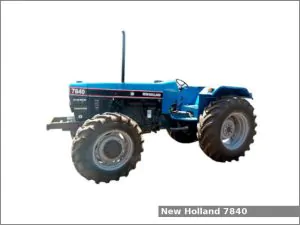

New Holland 7840The New Holland 7840 is a 2WD/4WD row-crop tractor from the PowerStar 40 series. This tractor was manufactured by New Holland in Basildon, England from 1996 to 1998. The New Holland 7840 is equipped with a 6.6 L (401.8 cu·in) six-cylinder diesel engine and one of four transmission variants.

The NH 7840 row-crop tractor used the Ford Genesis engine. It is a 6.6 L, 6,585 cm2, (401.8 cu·in) six-cylinder natural aspirated diesel engine with 112.0 mm (4.41 in) of the cylinder bore and 112.0 mm (4.41 in) of the piston stroke. The compression ratio rating is 17.5:1. This engine produced 91.3 PS (67.1 kW; 90.0 HP) of PTO output power.

The New Holland 7840 is equipped with hydrostatic power steering, mechanical (S) or hydraulic wet disc (SL/SLE) brakes, two-post foldable ROPS with flat-deck platform or Comfort Command Cab and 217.6 liters (57.5 US gal.; 47.9 Imp. gal) fuel tank.

The New Holland 7840 variants:

  • 7840S: EconoShift 8-speed transmission, economy version
  • 7840SL: SynchroShift 12-speed transmission
  • 7840SLE: ElectroShift/Pulse Command 16-speed transmission, Premium version

New Holland 7840 Specifications

General Specifications
ModelNew Holland 7840
Length4,470 mm (176 in)
Width2,100 mm (82.7 in)
Height (cab)2,790 mm (109.8 in)
Wheel base 2WD: 2,690 mm (105.9 in)
4WD: 2,610 mm (102.8 in)
Ground clearance (front axle) 2WD: 580 mm (22.8 in)
4WD: 550 mm (21.7 in)
Weight (shipping) 2WD ROPS: 3,665 kg (8,080 lbs)
4WD ROPS: 4,145 kg (9,140 lbs)
2WD Cab: 4,180 kg (9,215 lbs)
4WD Cab: 4,660 kg (10,275 lbs)
Fuel tank capacity217.6 liters (57.5 US gal.; 47.9 Imp. gal)
BatteryOne 12V (ROPS) or two 12V (Cab), CCA 800A
Cabin typeTwo-post foldable ROPS with flat-deck platform or Comfort Command Cab (optional for SL/SLE)
Engine
Engine modelFord Genesis
Engine typeFour-stroke, liquid-cooled, inline
Cylinders6
Fuel typeDiesel
Displacement6.6 L, 6,585 cm2, (401.8 cu·in)
Bore and stroke112.0 mm X 112.0 mm (4.41 in X 4.41 in)
Compression ratio17.5:1
Horsepower91.3 PS (67.1 kW; 90.0 HP)
StarterElectric
Oil capacity:20.9 L (22.1 US. qt, 18.4 Imp. qt.)
Coolant capacity:20.0 L (21.1 US. qt, 17.6 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD (optional)
Steering typeHydrostatic power
BrakesMechanical (S), hydraulic wet disc (SL/SLE)
Final driveInboard planetary
Differential lockElectro-hydraulic (SLE)
Transmission modelEconoShift
Transmission typeConstant mesh with dry disc clutch
Gears8 forward and 2 reverse
Speed Forward: 30.3 kmh (18.8 mph) Reverse: 14.6 kmh (9.1 mph)
Transmission oil capacity65.9 L (17.4 US. gal, 14.5 Imp. gal.)
Transmission modelDual Power
Transmission typeTwo-speed power shift with dry disc clutch
Gears16 forward and 4 reverse
Speed Forward: 30.3 kmh (18.8 mph) Reverse: 14.6 kmh (9.1 mph)
Transmission modelSynchroShift
Transmission typeSynchronized with dry disc clutch
Gears12 forward and 12 reverse
Speed Forward: 30.9 kmh (19.2 mph)
Transmission modelElectroShift/Pulse Command
Transmission typeFour-speed power shift with wet disc clutch
Gears16 forward and 16 reverse
SpeedForward: 30.7 kmh (19.1 mph)
Transmission oil capacity60.6 L (16 US. gal, 13.3 Imp. gal.)
Tires
Front tires Ag: 10.00-16
Rear tires Ag: 18.4-34
Three-Point Hitch
CategoryII
Control type Position control and top-link draft sensing
7840 SLE (optional): Electronic lower-link sensing
Lift capacity (at 610 mm/24 in) SL: 2,816 kg (6,210 lbs)
SL (optional): 3,737 kg (8,240 lbs)
SLE: 2,977 kg (6,564 lbs)
SLE (optional): 3,950 kg (8,710 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed540/1000 rpm
Hydraulic system
Hydraulic typeOpen center (S/SL) or closed center load sensing (SLE)
Valves1 to 4
Pump flow 17.4 gpm (65.9 lpm)
SLE: 20.0 gpm (75.7 lpm)
