New Holland 3010

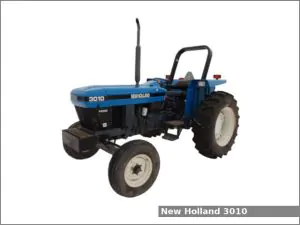

New Holland 3010The New Holland 3010 is a 2WD/4WD utility tractor manufactured by New Holland in Queretaro, Mexico from 1996 to 2003. The New Holland 3010 is equipped with a 2.7 L (164.8 cu·in) three-cylinder diesel engine and a constant mesh transmission with 8 forward and 2 reverse gears.

The NH 3010 utility tractor used the New Holland engine. It is a 2.7 L, 2,700 cm2, (164.8 cu·in) three-cylinder natural aspirated diesel engine with 100.0 mm (3.94 in) of the cylinder bore and 115.0 mm (4.53 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 55.8 PS (41.0 kW; 55.0 HP) at 2,500 rpm of output power.

The New Holland 3010 is equipped with power steering, wet disc brakes, two-post ROPS and 59.8 liters (15.8 US gal.; 13.2 Imp. gal) fuel tank.

New Holland 3010 Specifications

General Specifications
Model New Holland 3010
Length 2WD: 3,450 mm (135.8 in)
4WD: 3,200 mm (126 in)
Width 2WD: 1,900 mm (74.8 in)
4WD: 2,000 mm (78.7 in)
Height (ROPS) 2WD: 2,310 mm (90.9 in)
4WD: 2,340 mm (92.1 in)
Wheel base 2,000 mm (78.7 in)
Ground clearance (front axle) 2WD: 440 mm (17.3 in)
4WD: 380 mm (15 in)
Weight (operating) 2WD: 2,250 kg (4,960 lbs)
4WD: 2,590 kg (5,710 lbs)
Fuel tank capacity 59.8 liters (15.8 US gal.; 13.2 Imp. gal)
Battery 12V, 105Ah
Cabin type Two-post ROPS
Engine
Engine model New Holland
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 2.7 L, 2,700 cm2, (164.8 cu·in)
Bore and stroke 100.0 mm X 115.0 mm (3.94 in X 4.53 in)
Compression ratio 17.0:1
Horsepower 55.8 PS (41.0 kW; 55.0 HP) at 2,500 rpm
Starter Electric
Oil capacity: 7.3 L (7.7 US. qt, 6.4 Imp. qt.)
Coolant capacity: 11.0 L (11.6 US. qt, 9.7 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Transmission model
Transmission type Constant mesh
Gears 8 forward and 2 reverse
Transmission oil capacity 2WD: 32.2 L (8.5 US. gal, 7.1 Imp. gal.)
4WD: 31.0 L (8.2 US. gal, 6.8 Imp. gal.)
Tires
Front tires Ag: 7.50-16 (2WD), 9.5-24 (4WD)
Rear tires Ag: 14.9-28
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Gear pump
Hydraulic capacity 2WD: 32.2 L (8.5 US. gal, 7.1 Imp. gal.)
4WD: 31.0 L (8.2 US. gal, 6.8 Imp. gal.)
Pressure 2750 psi (189.6 bar)
Pump flow 8.6 gpm (32.6 lpm)
Steering flow 4.0 gpm (15.1 lpm)
Total flow 12.6 gpm (47.7 lpm)
