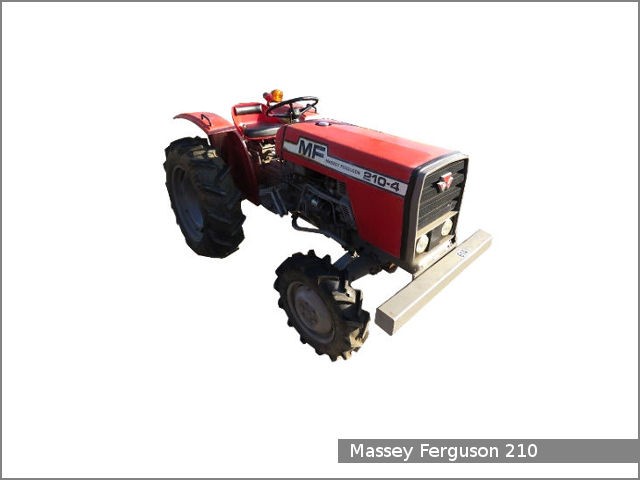

Massey Ferguson 210 / 210-4

Massey Ferguson 210The Massey Ferguson 210 is a two-wheel or four-wheel (210-4) compact utility tractor, manufactured by Japanese company Hinomoto on factory in Osaka, Japan between 1978 and 1984. The Massey Ferguson 210 is the same tractor as the Allis-Chalmers 5020, Hinomoto E23 and Simplicity 9523. The MF 210 is equipped with two-cylinders liquid-cooled Toyosha P126 diesel engine with 1.3 L, 1,263 cc (77.1 cu-in) of displacement and gear transmission with 12 forward and 3 reverse gears. This transmission has four gears in three ranges (low, medium, and high).

The Ferguson 210 / 210-4 utility tractor used a two-cylinder naturally-aspirated liquid-cooled Toyosha P126 diesel engine with 92.0 mm (3.62 in) of the cylinder bore and 95.0 mm (3.74 in) of the piston stroke. Compression ratio rating is 23:1. This motor produced 23.0 hp (17.1 kW) of horsepower. This motor produced 25.0 hp (18.6 kW) of maximum horsepower and 23.0 hp (17.1 kW) on PTO-shaft.

The MF 210 / MF 210-4 are equipped with gear transmission with 12 forward and 3 reverse gears. This tractor used manual steering, molded asbestos single plate dry clutch, and mechanical drum brakes. The Massey Ferguson 210 / 210-4 used open operator station. The tractor can be used with a front-end loader or mower attachments.

The Massey Ferguson 210 tractor is avalible in two variants:

  • 210 – two-wheel tarctor
  • 210-4 – four-wheel tarctor

Massey Ferguson 210 specifications

General Specifications
Model Massey Ferguson 210
Length
Width
Height
Wheelbase
Ground clearance
Weight 210: 1,250 kg (2,765 lb.)
210-4: 1,440 kg (3,180 lb.)
Fuel tank capacity
Battery 12V
Engine
Engine model Toyosha P126
Fuel Diesel
Displacement 1.3 L, 1,216 L (77.1 cu.in.)
Bore x stroke 92.0 x 95.0 mm (3.62 x 3.74 in)
Power output 25.0 HP (18.6 kW)
Torque
Starter type Electric starter
Oil type
Oil capacity 4.0-4.7 L (4.2-5.0 qt.)
Coolant capacity
Tires size
Front tires Ag: 5.00-15 (210) or 6-14 (210-4)
Rear tires Ag: 10-24 or 11.2-24
Transmission and chassis
Chassis 210: 4×2 2WD
210-4: 4×4 MFWD 4WD
Steering Manual
Transmission type Gear
Gears 12 forward and 3 reverse
Ground speed
Transmission oil capacity
PTO (Power take-off shaft)
PTO Type: Rear
PTO Speed: 540 rpm
Hydraulic lift
3-point linkage: Category I
Control system:
No. of remote valves:
Max lifting capacity (at link end):
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.

1 Comment

  1. Hello team and thanks for the informations on MF210. I,ve just acquired one and I wish to know how it’s 3point Hitch work please.
