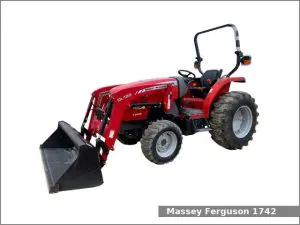

Massey Ferguson 1742

Massey Ferguson 1742The Massey Ferguson 1742 is a 4WD compact utility tractor from the 1700 series. This tractor was manufactured by Massey Ferguson from 2013 to 2018. The Massey Ferguson 1742 is equipped with a 1.7 L (101.0 cu·in) three-cylinder diesel engine and one of two transmissions: a power shuttle transmission with 12 forward and 12 reverse gears or a hydrostatic transmission with infinite (3-range) forward and reverse gears.

The MF 1742 compact utility tractor used the Mitsubishi K38 engine. It is a 1.7 L, 1,655 cm2, (101.0 cu·in) three-cylinder turbocharged intercooled diesel engine with 86.0 mm (3.39 in) of the cylinder bore and 95.0 mm (3.74 in) of the piston stroke. This engine produced 42.2 PS (31.0 kW; 41.6 HP) at 2,500 rpm of output power.

The Massey Ferguson 1742 is equipped with power steering, wet disc brakes, two-post folding ROPS or cab (optional) and 54.9 liters (14.5 US gal.; 12.1 Imp. gal) fuel tank.

Massey Ferguson 1742 Specifications

General Specifications
Model Massey Ferguson 1742
Length 3,310 mm (130.3 in)
Width 1,630 mm (64.2 in)
Height (cab) 2,310 mm (90.9 in)
Wheel base 1,800 mm (70.9 in)
Weight ROPS: 1,650 kg (3,638 lbs)
Cab: 1,845 kg (4,068 lbs)
Fuel tank capacity 54.9 liters (14.5 US gal.; 12.1 Imp. gal)
Battery 12V
Cabin type Two-post folding ROPS or Cab (optional)
Engine model Mitsubishi K38
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.7 L, 1,655 cm2, (101.0 cu·in)
Bore and stroke 86.0 mm X 95.0 mm (3.39 in X 3.74 in)
Horsepower 42.2 PS (31.0 kW; 41.6 HP) at 2,500 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Final drive Bull gear
Transmission model
Transmission type Power shuttle with wet disc clutch
Gears 12 forward and 12 reverse
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Front tires Ag: 12.4×24
Lawn/turf: 27×8.50-15
Rear tires Ag: 13.6×24
Lawn/turf: 41×14.00-20
Three-Point Hitch
Category I
Control type Position control, draft-control (optional)
Lift capacity (at 610 mm/24 in) 1,150 kg (2,535 lbs)
PTO (Power take-off shaft)
Middle PTO type Optional
Middle PTO speed 2000 rpm
Rear PTO type Independent with electro-hydraulic clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center gear pump
Valves 1 to 3
SCV flow 11.6 gpm (43.9 lpm)
