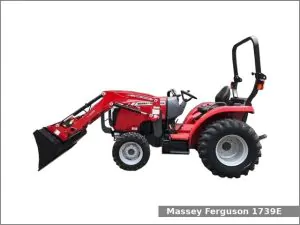

Massey Ferguson 1739E

Massey Ferguson 1739EThe Massey Ferguson 1739E is a 4WD compact utility tractor manufactured by Massey Ferguson (a part of AGCO) from 2013. The Massey Ferguson 1739E is equipped with a 1.5 L (91.3 cu·in) three-cylinder diesel engine and one of two transmissions: a gear type transmission with 9 forward and 3 reverse gears or a hydrostatic transmission with infinite (3-range) forward and reverse gears.

The MF 1739E compact utility tractor used the Shibaura N843T-F engine. It is a 1.5 L, 1,496 cm2, (91.3 cu·in) three-cylinder turbocharged diesel engine with 84.0 mm (3.31 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. This engine produced 40.1 PS (29.5 kW; 39.6 HP) at 2,600 rpm of output power.

The Massey Ferguson 1739E is equipped with hydrostatic power steering, wet disc brakes, two-post foldable ROPS and 38.0 liters (10.0 US gal.; 8.4 Imp. gal) fuel tank.

Massey Ferguson 1739E Specifications

General Specifications
Model Massey Ferguson 1739E
Length 2,950 mm (116.1 in)
Width 1,330 mm (52.4 in)
Height (ROPS) 2,470 mm (97.2 in)
Wheel base 1,670 mm (65.7 in)
Weight Gear: 1,250 kg (2,756 lbs)
Hydro: 1,255 kg (2,767 lbs)
Fuel tank capacity 38.0 liters (10 US gal.; 8.4 Imp. gal)
Battery 12V
Cabin type Two-post foldable ROPS
Engine
Engine model Shibaura N843T-F
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.5 L, 1,496 cm2, (91.3 cu·in)
Bore and stroke 84.0 mm X 90.0 mm (3.31 in X 3.54 in)
Horsepower 40.1 PS (29.5 kW; 39.6 HP) at 2,600 rpm
Starter Electric
Oil capacity: 4.6 L (4.9 US. qt, 4 Imp. qt.)
Coolant capacity: 5.0 L (5.3 US. qt, 4.4 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc
Final drive Bull gear
Differential lock Rear standard
Transmission model
Transmission type Gear type with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 21.3 kmh (13.2 mph) Reverse: 12.8 kmh (8 mph)
Transmission oil capacity 37.9 L (10 US. gal, 8.3 Imp. gal.)
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 23.6 kmh (14.7 mph) Reverse: 18.4 kmh (11.4 mph)
Tires
Front tires Lawn/turf: 27×8.50-15
Industrial: 27×8.50-15
Rear tires Lawn/turf: 38×14.00-20
Industrial: 15×19.5
Three-Point Hitch
Category I
Control type
Lift capacity (at ends) 1,000 kg (2,205 lbs)
PTO (Power take-off shaft)
Rear PTO type Live
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center gear pump
SCV flow 7.2 gpm (27.3 lpm)
Steering flow 4.1 gpm (15.5 lpm)
Total flow 11.3 gpm (42.8 lpm)
