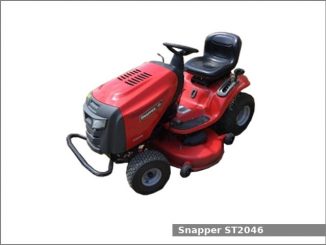

Snapper ST2046The Snapper ST2046 is a 2WD lawn tractor from the ST series. This tractor was manufactured by Snapper (a part of Briggs & Stratton) during 2014. The Snapper ST2046 is equipped with two-cylinder gasoline engine and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Snapper ST2046 lawn tractor used the Briggs & Stratton Intek 40R877 engine. It is a V-twin natural aspirated gasoline engine. This engine produced 20.3 PS (14.9 kW; 20.0 HP) at 3,600 rpm of output power.

The Snapper ST2046 is equipped with manual steering, an open operator station, 11.4 liters (3 US gal.; 2.5 Imp. gal) fuel tank, and a mid-mount 46 in (1,160 mm) mower deck with 2-blade and manual lift.

Snapper ST2046 Specifications

General Specifications
Model Snapper ST2046
Length 1,750 mm (68.9 in)
Width 1,440 mm (56.7 in)
Height 1,060 mm (41.7 in)
Wheel base
Weight
Fuel tank capacity 11.4 liters (3 US gal.; 2.5 Imp. gal)
Battery 12V, CCA 230A
Cabin type Open operator station
Engine
Engine model Briggs & Stratton 40R877 Intek
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 655 cm2, (40.0 cu·in)
Bore and stroke 75.0 mm X 73.0 mm (2.95 in X 2.87 in)
Horsepower 20.3 PS (14.9 kW; 20.0 HP) at 3,600 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Disk
Transmission model Hydro-Gear T2
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.8 kmh (5.5 mph) Reverse: 4.8 kmh (3 mph)
Tires
Front tires Lawn/turf: 15×6.00-6
Rear tires Lawn/turf: 20×8.00-8
PTO (Power take-off shaft)
Front PTO type Independent with mechanical clutch
Front PTO speed
