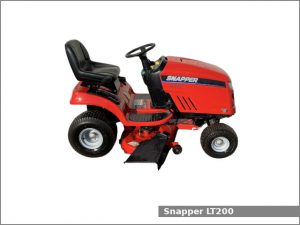

Snapper LT200H48

The Snapper LT200H48 is a 2WD lawn tractor manufactured by Snapper from 2003 to 2005. The Snapper LT200H48 is equipped with a 0.7 L (40.0 cu·in) two-cylinder gasoline engine and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Snapper LT200 lawn tractor used the Briggs & Stratton 40G777 engine. It is a 0.7 L, 655 cm2, (40.0 cu·in) two-cylinder natural aspirated gasoline engine with 75.0 mm (2.95 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke. This engine produced 20.3 PS (14.9 kW; 20.0 HP) of output power.

The Snapper LT200 H48 is equipped with manual steering, dry disc brakes, an open operator station and 7.6 liters (2 US gal.; 1.7 Imp. gal) fuel tank.

Snapper LT200H48 Specifications

General Specifications
Model Snapper LT200 H48
Length 1,670 mm (65.7 in)
Width 1,470 mm (57.9 in)
Height 1,010 mm (39.8 in)
Wheel base 1,240 mm (48.8 in)
Weight 281 kg (619 lbs)
Fuel tank capacity 7.6 liters (2 US gal.; 1.7 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Briggs & Stratton 40G777
Engine type Four-stroke, air-cooled
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 655 cm2, (40.0 cu·in)
Bore and stroke 75.0 mm X 73.0 mm (2.95 in X 2.87 in)
Horsepower 20.3 PS (14.9 kW; 20.0 HP)
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Dry disc
Transmission model Tuff Torq K46
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 10.5 kmh (6.5 mph) Reverse: 8.0 kmh (5.0 mph)
Tires
Front tires Lawn/turf: 15×5.50-6
Rear tires Lawn/turf: 20×10.00-8
PTO (Power take-off shaft)
Front PTO type Independent with electric clutch
Front PTO speed
