Ford 1920

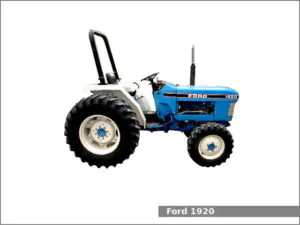

Ford 1920The Ford 1920 is a 2WD or 4WD compact utility tractor from the Twenty Compact series. This tractor was manufactured by Shibaura for Ford in Japan from 1987 to 2000. The Ford 1920 is equipped with a 2.0 L four-cylinder diesel engine and one of two transmissions: gear type transmission with 12 forward and 4 reverse gears or mechanical shuttle transmission with 12 forward and 12 reverse gears.

The Ford 1920 compact utility tractor used the Shibaura N844 engine. It is a 2.0 L, 1,995 cm2, (121.7 cu·in) four-cylinder natural aspirated diesel engine with 84.0 mm (3.31 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. The compression ratio rating is 19.0:1. This engine produced 33.7 PS (24.8 kW; 33.3 HP) at 2,500 rpm of maximum output power.

The Ford 1920 is equipped with power steering, wet disc brakes, open operator station with two-post ROPS and 39.0 liters (10.3 US gal.; 8.6 Imp. gal) fuel tank.

Following attachments are available for the Ford 1920 compact utility tractor:

  • Front-mount Ford 702C: 84 in (2,130 mm) blade
  • Front-mount Ford 715A: 63 in (1,600 mm) snowblower
  • Ford 7108 loader
  • Ford 758B backhoe

Ford 1920 Specifications

General Specifications
Model Ford 1920
Length 3,210 mm (126.4 in)
Width 1,480 mm (58.3 in)
Height 2,280 mm (89.8 in)
Wheel base 1,770 mm (69.7 in)
Weight 2WD: 1,290 kg (2,845 lbs)
4WD: 1,390 kg (3,070 lbs)
Fuel tank capacity 39.0 liters (10.3 US gal.; 8.6 Imp. gal)
Battery 12V
Cabin type Open operator station with two-post ROPS
Engine
Engine model Shibaura N844
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.0 L, 1,995 cm2, (121.7 cu·in)
Bore and stroke 84.0 mm X 90.0 mm (3.31 in X 3.54 in)
Compression ratio 19.0:1
Horsepower 33.7 PS (24.8 kW; 33.3 HP) at 2,500 rpm
Starter Electric
Injection timing 18-19° BTDC
Injector opening pressure 2,985 psi (20,590 kPa)
Oil capacity: 6.0 L (6.3 US. qt, 5.3 Imp. qt.)
Coolant capacity: 5.6 L (5.9 US. qt, 4.9 Imp. qt.)
Intake/Exhaust valve clearance 0.20 mm (0.008 in)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Power steering system capacity 1.8 L (1.9 US qts, 1.6 Imp qts)
Rear axle and transmission 29 L (7.7 US gal, 6.4 Imp. gal)
Front wheel drive axle 5.0 L (5.3 US qts, 4.4 Imp qts)
Transmission model
Transmission type Gear type
Gears 12 forward and 4 reverse
Transmission model
Transmission type Mechanical shuttle
Gears 12 forward and reverse
Tires
Front tires Ag: 5.50-16 (2WD), 7-16 (4WD)
Rear tires Ag: 13.6-24
Three-Point Hitch
Caterogy I
Control type
Lift capacity (at 610 mm/24 in) 853 kg (1,880 lbs)
PTO (Power take-off shaft)
Rear PTO type Transmission or live (option)
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Pump flow 7.8 gpm (29.5 lpm)
Steering flow 2.8 gpm (10.6 lpm)
Total flow 10.6 gpm (40.1 lpm)
