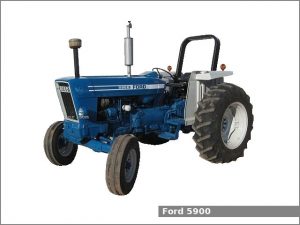

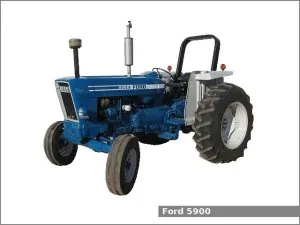

Ford 5900

Ford 5900The Ford 5900 is a 2WD utility tractor manufactured by Ford from 1985 to 1993. The Ford 5900 is equipped with a 4.2 L (256.0 cu·in) four-cylinder diesel engine and a sliding gear transmission with 8 forward and 2 reverse gears.

The Ford 5900 utility tractor used the Ford engine. It is a 4.2 L, 4,195 cm2, (256.0 cu·in) four-cylinder natural aspirated diesel engine with 112.0 mm (4.41 in) of the cylinder bore and 107.0 mm (4.21 in) of the piston stroke. The compression ratio rating is 16.3:1. This engine produced 74.0 PS (54.4 kW; 73.0 HP) at 2,100 rpm of output power.

The Ford 5900 is equipped with power steering, two-post fixed ROPS and 75.7 liters (20.0 US gal.; 16.7 Imp. gal) fuel tank.

Ford 5900 Specifications

General Specifications
Model Ford 5900
Length 3,700 mm (145.7 in)
Width 1,950 mm (76.8 in)
Height (ROPS) 2,380 mm (93.7 in)
Wheel base 2,220 mm (87.4 in)
Ground clearance Front axle: 450 mm (17.7 in)
Rear axle: 430 mm (16.9 in)
Weight 2,612 kg (5,758 lbs)
Fuel tank capacity 75.7 liters (20 US gal.; 16.7 Imp. gal)
Battery 12V, 128Ah
Cabin type Two-post fixed ROPS
Engine
Engine model Ford
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.2 L, 4,195 cm2, (256.0 cu·in)
Bore and stroke 112.0 mm X 107.0 mm (4.41 in X 4.21 in)
Compression ratio 16.3:1
Horsepower 74.0 PS (54.4 kW; 73.0 HP) at 2,100 rpm
Starter Electric
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: 12.8 L (13.5 US. qt, 11.3 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes
Differential lock Mechanical rear
Transmission model
Transmission type Sliding gear with dry disc clutch
Gears 8 forward and 2 reverse
Speed Forward: 23.3 kmh (14.5 mph) Reverse: 11.3 kmh (7 mph)
Transmission oil capacity 53.0 L (14 US. gal, 11.7 Imp. gal.)
Tires
Front tires Ag: 7.50-16
Rear tires Ag: 16.9-30
Three-Point Hitch
Category II
Control type
Lift capacity 1,515 kg (3,340 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 53.0 L (14 US. gal, 11.7 Imp. gal.)
Valves 1
Pump flow 6.0 gpm (22.7 lpm)
Steering flow 3.6 gpm (13.6 lpm)
Total flow 9.6 gpm (36.3 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
