Ford FW-60

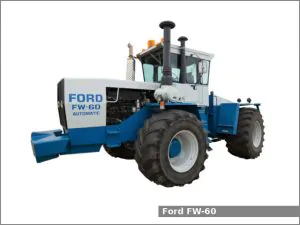

Ford FW-60The Ford FW-60 is a 4WD four-wheel drive tractor from the FW series. This tractor was manufactured by Steiger for distributor Ford in Fargo, North Dakota, USA from 1977 to 1982. The Ford FW-60 is equipped with a 14.8 L (901.1 cu·in) eight-cylinder diesel engine and one of two transmissions with 10 forward and 2 reverse gears or 20 forward and 4 reverse gears.

The Ford FW60 four-wheel drive used the Cummins engine. It is a 14.8 L, 14,767 cm2, (901.1 cu·in) eight-cylinder turbocharged diesel engine with 140.0 mm (5.51 in) of the cylinder bore and 121.0 mm (4.76 in) of the piston stroke. The compression ratio rating is 15.5:1. This engine produced 339.7 PS (249.8 kW; 335.0 HP) at 2,600 rpm of output power.

The Ford FW-60 is equipped with articulated power steering, hydraulic dry disc brakes, Cab (standard) with air-conditioning and 851.6 liters (225 US gal.; 187.3 Imp. gal) fuel tank.

Ford FW-60 Specifications

General Specifications
Model Ford FW-60
Length 6,780 mm (266.9 in)
Width
Height (cab) 3,410 mm (134.3 in)
Wheel base 3,360 mm (132.3 in)
Ground clearance 300 mm (11.8 in)
Weight (operating) 14,105 kg (31,096 lbs)
Fuel tank capacity 851.6 liters (225 US gal.; 187.3 Imp. gal)
Battery Four 12V, CCA 475A
Cabin type Cab (standard) with air-conditioning
Engine
Engine model Cummins
Engine type Four-stroke, liquid-cooled, V
Cylinders 8
Fuel type Diesel
Displacement 14.8 L, 14,767 cm2, (901.1 cu·in)
Bore and stroke 140.0 mm X 121.0 mm (5.51 in X 4.76 in)
Compression ratio 15.5:1
Horsepower 339.7 PS (249.8 kW; 335 HP) at 2,600 rpm
Starter Electric
Oil capacity: 35.6 L (37.6 US. qt, 31.3 Imp. qt.)
Coolant capacity: 64.0 L (67.6 US. qt, 56.3 Imp. qt.)
Transmission and chassis
Chassis 4×4 articulated 4WD
Steering type Articulated power
Brakes Hydraulic dry disc
Final drive Outboard planetary
Transmission model Spicer 1010
Transmission type
Gears 10 forward and 2 reverse
Speed Forward: 30.6 kmh (19 mph) Reverse: 4.3 kmh (2.7 mph)
Transmission oil capacity 35.0 L (9.2 US. gal, 7.7 Imp. gal.)
Transmission model
Transmission type
Gears 20 forward and 4 reverse
Speed Forward: 34.4 kmh (21.4 mph) Reverse: 5.0 kmh (3.1 mph)
Tires
Front tires Ag: 18.4×38
Rear tires Ag: 18.4×38
Three-Point Hitch
Category III
Control type
Lift capacity (at 610 mm/24 in) 5670 kg (12502 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 94.6 L (25 US. gal, 20.8 Imp. gal.)
Pressure 2250 psi (155.1 bar)
Valves 4 or 5
Pump flow 30.1 gpm (113.9 lpm)
SCV flow 20.0 gpm (75.7 lpm)
