Honda Harmony H1011

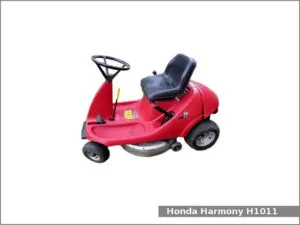

Honda Harmony H1011The Honda Harmony 1011 is a riding lawn mower with small vertical general-purpose Honda GXV340K1 engine (337 cc, 20.6 cu-in) and 760 mm (30 in.) deck with belt drive that is adjustable in six increments for cutting heights between 25 mm (1 in.) and 90 mm (3.5 in).

The Honda GXV340K1 is air-cooled single-cylinder four-stroke gasoline engine with vertical PTO shaft. An 82.0 mm (3.23 in) cylinder bore and 64.0 mm (2.5 in) piston stroke give the motor a total of 337 cc (20.6 cu-in) of displacement. Compression ratio rating is 7.7:1. The motor produces 11.0 HP (8.2 kW) at 3,600 rpm and 23.0 Nm (2.3 kg·m, 17.0 ft·lb) of torque at 2,500 rpm.

The Honda H1011 is available in three versions:

  • H1011S – model with electric starter and gear transmission;
  • H1011R – model with recoil starter and gear transmission;
  • H1011H – model with electric starter and hydrostatic transmission;

The gear type transmission uses parallel shaft, constant mesh and sliding key. The gear transmission has five forward gears from 2.4 km/h to 7.3 km/h (1.5 mph to 4.5 mph), neutral gear and single reverse gear 3.7 km/h (2.3 mph).

The hydrostatic transmission uses sealed hydrostatic motor and pump. The transmissiom has three approximate ground speeds: Reverse from 0 to 3.4 km/h (0-2.1 mph), Mowing from 0 to 5.2 km/h (0-3.2 mph) and Transport from 5.2 to 6.6 km/h (3.2-4.1 mph)

Honda Harmony H1011 Specifications

General Specifications
Model H1011
Length 1520 mm (61.4 in)
Width 825 mm (32.5 in)
Height 1005 mm (39.6 in)
Wheel base 1150 mm (45.3 in.)
Dry weight H1011S: 160.0 kg (353.0 lbs)
H1011R: 150.0 kg (330.0 lbs)
H1011H: 161.0 kg (350.0 lbs)
Fuel tank capacity 3.4 l (0.9 US gal.)
Battery
Tires size
Front tires 11×4.0-5
Rear tires 16×6.5-8
Engine
Engine model Honda GXV340 K1
Number of Cylinders 1
Firing order
Fuel Gasoline
Displacement 337 cc (20.6 cu-in)
Bore x stroke 82.0 X 64.0 mm (3.23 x 2.5 in)
Power output 11.0 HP (8.2 kW) at 3600 rpm
Torque 23.0 Nm (2.3 kg·m, 17.0 ft·lb) at 2,500 rpm
Starter type Recoil starter
Ignition system Transistorized magneto ignition
Oil type Honda 4-stroke or an equivalent (SH or SJ)
Oil type 10W-30
Oil capacity 1.1 L (1.2 US gal, 1.0 lmp qt)
Spark plug NGK: BPR5ES
NIPPONDENSO: W16EPR-U
Spark plug gap 0.7-0.8 mm (0.028-0.031 in)
Gear type transmission
Gear type Parallel shaft, constant mesh, sliding key
Gear selections Five forward, single reverse with neutral
Groung speeds First: 2.4 km/h (1.5 mph)
Second: 3.1 km/h (1.9 mph)
Third: 4.9 km/h (3.0 mph)
Fourth: 6.2 km/h (3.9 mph)
Fifth: 7.3 km/h (4.5 mph)
Reverse: 3.7 km/h (2.3 mph)

Hydrostatic type transmission
Hydrostatic type Sealed hydrostatic motor and pump
Groung speeds Reverse: 0-3.4 km/h (0-2.1 mph)
Mowing: 0-5.2 km/h (0-3.2 mph)
Transport: 5.2-6.6 km/h (3.2-4.1 mph)
Mower Deck
Type Belt drive, side discharge, three point link
Deck size 760 mm (30 in.)
Height range 25-90 mm (1-3.5 in.)
Blade brake Mechanical Arm
Adjustments Left-right, front-rear, heigh
