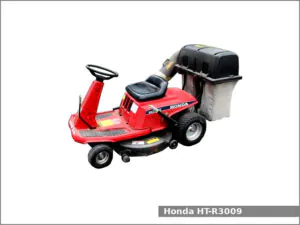

Honda HT-R3009

Honda HT-R3009The Honda HT-R3009 is a 2WD riding mower manufactured by Honda from 1985 to 1988. The Honda HT-R3009 is equipped with a 0.3 L (16.5 cu·in) single-cylinder gasoline engine and a belt-driven gear type transmission with 5 forward and 1 reverse gear.

The Honda HT-R3009 riding mower used the Honda GXV270 engine. It is a 0.3 L, 270 cm2, (16.5 cu·in) single-cylinder natural aspirated gasoline engine with 77.0 mm (3.03 in) of the cylinder bore and 58.0 mm (2.28 in) of the piston stroke. This engine produced 8.6 PS (6.3 kW; 8.5 HP) at 3,600 rpm of output power.

The Honda HT-R3009 is equipped with manual steering, an open operator station and 1.9 liters (0.5 US gal.; 0.4 Imp. gal) fuel tank.

Honda HT-R3009 Specifications

General Specifications
Model Honda HT-R3009
Length 1,500 mm (59.1 in)
Width
Height (steering wheel) 1,000 mm (39.4 in)
Wheel base 1,090 mm (42.9 in)
Weight 165 kg (364 lbs)
Fuel tank capacity 1.9 liters (0.5 US gal.; 0.4 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Honda GXV270
Engine type Four-stroke, air-cooled
Cylinders 1
Fuel type Gasoline
Displacement 0.3 L, 270 cm2, (16.5 cu·in)
Bore and stroke 77.0 mm X 58.0 mm (3.03 in X 2.28 in)
Horsepower 8.6 PS (6.3 kW; 8.4 HP) at 3,600 rpm
Starter Electric
Oil type SAE 10W-30, 10W-40
Oil capacity: 1.1 L (1.2 US. qt, 1 Imp. qt.)
Spark plug NGK BPR5ES
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes
Transmission model
Transmission type Belt-driven gear type
Gears 5 forward and 1 reverse
Speed Forward: 7.9 kmh (4.9 mph) Reverse: 2.7 kmh (1.7 mph)
Tires
Front tires Lawn/turf: 11×4.00-5
Rear tires Lawn/turf: 16×6.50-8
PTO (Power take-off shaft)
Middle PTO type Independent with manual clutch
Middle PTO speed
