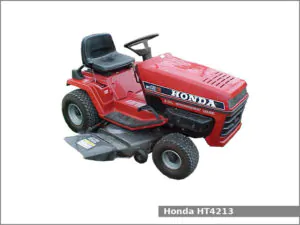

Honda HT4213

Honda HT4213The Honda HT4213 is a 2WD lawn tractor from the HT series. This tractor was manufactured by Honda from 1987 to 1989. The Honda HT4213 is equipped with a 0.4 L (21.8 cu·in) two-cylinder gasoline engine and a gear type transmission with 5 forward and 1 reverse gears.

The Honda HT4213 lawn tractor used the Honda GX360K1 engine. It is a 0.4 L, 358 cm2, (21.8 cu·in) two-cylinder natural aspirated gasoline engine with 58.0 mm (2.28 in) of the cylinder bore and 68.0 mm (2.68 in) of the piston stroke. This engine produced 13.2 PS (9.7 kW; 13.0 HP) at 3,600 rpm of output power.

The Honda HT4213 is equipped with manual steering, an open operator station, and 7.1 liters (1.9 US gal.; 1.6 Imp. gal) fuel tank.

Honda HT4213 Specifications

General Specifications
Model Honda HT4213
Length 1,750 mm (68.9 in)
Width 1,440 mm (56.7 in)
Height 1,040 mm (40.9 in)
Wheel base 1,160 mm (45.7 in)
Weight 257 kg (567 lbs)
Fuel tank capacity 7.1 liters (1.9 US gal.; 1.6 Imp. gal)
Battery 12V, 30Ah
Cabin type Open operator station
Engine model Honda GX360K1
Engine type Four-stroke, liquid-cooled, inline
Cylinders 2
Fuel type Gasoline
Displacement 0.4 L, 358 cm2, (21.8 cu·in)
Bore and stroke 58.0 mm X 68.0 mm (2.28 in X 2.68 in)
Horsepower 13.2 PS (9.7 kW; 13 HP) at 3,600 rpm
Torque 25.8 N·m (2.6 kg·m, 19 ft·lb) at 3,000 rpm
Starter Electric
Oil type SAE 10W-30, 10W-40
Oil capacity: 1.48 L (1.6 US. qt, 1.3 Imp. qt.)
Coolant capacity: 1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Transmission model
Transmission type Gear type
Gears 5 forward and 1 reverse
Speed Forward: 8.7 kmh (5.4 mph) Reverse: 2.9 kmh (1.8 mph)
Front tires Lawn/turf: 15×6.00-6
Rear tires Lawn/turf: 18×8.50-8
PTO (Power take-off shaft)
Middle PTO type Independent with manual clutch
Middle PTO speed
