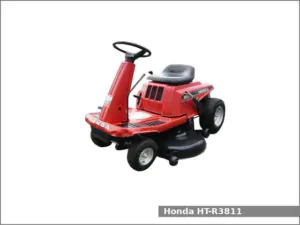

The Honda HT-R3811 is a 2WD riding mower manufactured by Honda from 1985 to 1988. The Honda HT-R3811 is equipped with a 0.3 L (20.6 cu·in) single-cylinder gasoline engine and a belt-driven gear type transmission with 5 forward and 1 reverse gear.
The Honda HT-R3811 riding mower used the Honda GXV340 engine. It is a 0.3 L, 337 cm2, (20.6 cu·in) single-cylinder natural aspirated gasoline engine with 82.0 mm (3.23 in) of the cylinder bore and 64.0 mm (2.52 in) of the piston stroke. This engine produced 11.2 PS (8.2 kW; 11.0 HP) at 3,600 rpm of output power.
The Honda HT-R3811 is equipped with manual steering, an open operator station and 1.9 liters (0.5 US gal.; 0.4 Imp. gal) fuel tank.
Honda HT-R3811 Specifications
|Length||1,530 mm (60.2 in)|
|Height (steering wheel)||1,000 mm (39.4 in)|
|Wheel base||1,090 mm (42.9 in)|
|Weight||390 kg (860 lbs)|
|Fuel tank capacity||1.9 liters (0.5 US gal.; 0.4 Imp. gal)|
|Cabin type||Open operator station|
|Engine model||Honda GXV340|
|Engine type||Four-stroke, air-cooled, inline|
|Displacement||0.3 L, 337 cm2, (20.6 cu·in)|
|Bore and stroke||82.0 mm X 64.0 mm (3.23 in X 2.52 in)|
|Horsepower||11.2 PS (8.2 kW; 11.0 HP) at 3,600 rpm|
|Oil type||SAE 10W-30, 10W-40|
|Oil capacity:||1.1 L (1.2 US. qt, 1 Imp. qt.)|
|Spark plug||NGK BPR5ES|
|Transmission and chassis|
|Transmission type||Belt-driven gear type|
|Gears||5 forward and 1 reverse|
|Speed||Forward: 7.9 kmh (4.9 mph) Reverse: 2.7 kmh (1.7 mph)|
|Front tires||Lawn/turf: 11×4.00-5|
|Rear tires||Lawn/turf: 16×6.50-8|
|PTO (Power take-off shaft)|
|Middle PTO type||Independent with manual clutch|
|Middle PTO speed||–|
