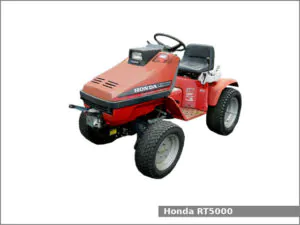

Honda RT5000

Honda RT5000The Honda RT5000 is a 2WD or 4WD garden tractor manufactured by Honda from 1986 to 1989. The Honda RT5000 is equipped with a 0.3 L (20.7 cu·in) single-cylinder gasoline engine and a gear type transmission with 8 forward and 2 reverse gears.

The Honda RT5000 garden tractor used the Honda GX340 engine. It is a 0.3 L, 339 cm2, (20.7 cu·in) single-cylinder natural aspirated gasoline engine with 81.0 mm (3.19 in) of the cylinder bore and 64.0 mm (2.52 in) of the piston stroke. This engine produced 11.2 PS (8.2 kW; 11.0 HP) at 3,600 rpm of output power.

The Honda RT5000 is equipped with manual four-wheel steering, mechanical shoe brakes, an open operator station with two-post ROPS, and 8.3 liters (2.2 US gal.; 1.8 Imp. gal) fuel tank. This garden tractor could be equipped with a front-mount Honda SB752A two-stage snowblower.

Honda RT5000 Specifications

General Specifications
Model Honda RT5000
Length 2,080 mm (81.9 in)
Width 1,050 mm (41.3 in)
Height (ROPS) 1,940 mm (76.4 in)
Wheel base 1,210 mm (47.6 in)
Weight 435 kg (959 lbs)
Fuel tank capacity 8.3 liters (2.2 US gal.; 1.8 Imp. gal)
Battery 12V, 30Ah
Cabin type Open operator station with two-post ROPS
Engine model Honda GX340
Engine type Four-stroke, air-cooled
Cylinders 1
Fuel type Gasoline
Displacement 0.3 L, 339 cm2, (20.7 cu·in)
Bore and stroke 81.0 mm X 64.0 mm (3.19 in X 2.52 in)
Horsepower 11.2 PS (8.2 kW; 11.0 HP) at 3,600 rpm
Starter Electric
Oil type SAE 10W-30, 10W-40
Oil capacity: 1.1 L (1.2 US. qt, 1 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Manual four-wheel
Brakes Mechanical shoe
Transmission model
Transmission type Gear type
Gears 8 forward and 2 reverse
Speed Forward: 10.6 kmh (6.6 mph) Reverse: 2.7 kmh (1.7 mph)
Transmission oil capacity 3.8 L (1 US. gal, 0.8 Imp. gal.)
Front tires Lawn/turf: 20×7.00-12.2
Rear tires Lawn/turf: 24×8.00-14.2
Three-Point Hitch
Category 0
Control type
Lift capacity (at ends) 250 kg (550 lbs)
PTO (Power take-off shaft)
Front PTO type Independent
Front PTO speed 2650 rpm
Rear PTO type Independent
Rear PTO speed 2000 rpm
Hydraulic system
Hydraulic capacity 2.0 L (0.5 US. gal, 0.4 Imp. gal.)
Pressure 1280 psi (88.3 bar)
