Allis Chalmers WC (1933-1937)

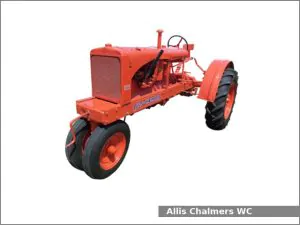

Allis Chalmers WCThe Allis Chalmers WC is a 2WD row-crop tractor manufactured by Allis Chalmers in West Allis, Wisconsin, USA from 1933 to 1948. The first generation was manufactured from 1933 to 1937.

The Allis Chalmers WC is equipped with one of three engines: a 3.0 L (186.0 cu·in) four-cylinder gasoline engine, a 3.3 L (201.0 cu·in) four-cylinder gasoline engine, or a 3.3 L (201.0 cu·in) four-cylinder distillate engine and a non-synchronized gear type transmission with 4 forward and 1 reverse gear.

The tractor could be equipped with the following engines:

  • Waukesha (gasoline). It is a 3.0 L, 3,048 cm2, (186.0 cu·in) four-cylinder natural aspirated gasoline engine with 92.0 mm (3.62 in) of the cylinder bore and 114.0 mm (4.49 in) of the piston stroke.
  • Allis-Chalmers (gasoline). It is a 3.3 L, 3,294 cm2, (201.0 cu·in) four-cylinder natural aspirated gasoline engine. The cylinder bore is 102.0 mm (4.02 in) and the piston stroke is 102.0 mm (4.02 in). The compression ratio rating is 5.0:1. This engine produced 12.1 PS (8.9 kW; 11.9 HP) at 1,300 rpm of output power.
  • Allis-Chalmers (distillate). It is a 3.3 L, 3,294 cm2, (201.0 cu·in) four-cylinder natural aspirated gasoline engine. The cylinder bore is 102.0 mm (4.02 in) and the piston stroke is 102.0 mm (4.02 in). The compression ratio rating is 4.2:1. This engine produced 12.1 PS (8.9 kW; 11.9 HP) at 1,300 rpm of output power.

The Allis Chalmers WC is equipped with manual steering, differential hand-operated mechanical drum brakes, open operator station and 56.8 liters (15 US gal.; 12.5 Imp. gal) fuel tank.

Allis Chalmers WC Specifications

General Specifications
Model Allis Chalmers WC
Length 3,450 mm (135.8 in)
Width 1,930 mm (76 in)
Height 1,600 mm (63 in)
Wheel base
Ground clearance (rear axle) 730 mm (28.7 in)
Weight (operating) Steel: 1,446 kg (3,188 lbs)
Rubber: 1,720 kg (3,792 lbs)
Fuel tank capacity 56.8 liters (15 US gal.; 12.5 Imp. gal)
Battery 6V, 95Ah
Cabin type Open operator station
Engine
Engine model Waukesha
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 3.0 L, 3,048 cm2, (186.0 cu·in)
Bore and stroke 92.0 mm X 114.0 mm (3.62 in X 4.49 in)
Horsepower
Starter Manual crank
Engine
Engine model Allis-Chalmers
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 3.3 L, 3,294 cm2, (201.0 cu·in)
Bore and stroke 102.0 mm X 102.0 mm (4.02 in X 4.02 in)
Compression ratio 5.0:1
Horsepower (drawbar) 12.1 PS (8.9 kW; 11.9 HP) at 1,300 rpm
Starter Electric or manual crank
Oil capacity: 5.7 L (6 US. qt, 5 Imp. qt.)
Coolant capacity: 13.2 L (13.9 US. qt, 11.6 Imp. qt.)
Engine
Engine model Allis-Chalmers
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 3.3 L, 3,294 cm2, (201.0 cu·in)
Bore and stroke 102.0 mm X 102.0 mm (4.02 in X 4.02 in)
Compression ratio 4.2:1
Horsepower (drawbar) 12.1 PS (8.9 kW; 11.9 HP) at 1,300 rpm
Starter Electric or manual crank
Oil capacity: 5.7 L (6 US. qt, 5 Imp. qt.)
Coolant capacity: 13.2 L (13.9 US. qt, 11.6 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Differential hand-operated mechanical drum
Transmission model
Transmission type Non-synchronized gear type
Gears 4 forward and 1 reverse
Speed Forward: 14.5 kmh (9 mph) Reverse: 3.2 kmh (2 mph)
Transmission oil capacity 3.8 L (1.0 US. gal, 0.8 Imp. gal.)
With PTO: 4.7 L (1.2 US gal, 1.0 Imp. gal)
Tires
Front tires Ag: 24×4 steel
Ag: 5.25-17
Rear tires Ag: 40×6 steel
Ag: 11.25×24
PTO (Power take-off shaft)
Rear PTO type Transmission
Rear PTO speed 535 rpm
