Allis Chalmers D19

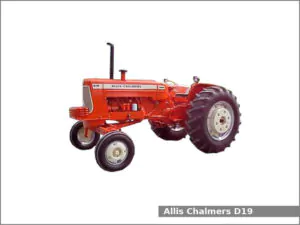

Allis Chalmers D19The Allis Chalmers D19 is a 2WD row-crop tractor from the D series. This tractor was manufactured by Allis Chalmers in West Allis, Wisconsin, USA from 1961 to 1964.

The Allis Chalmers D19 is equipped with one of two engines: a 4.3 L (262.0 cu·in) six-cylinder gasoline engine or a 4.3 L (262.0 cu·in) six-cylinder diesel engine and sliding gear transmission with 8 forward and 2 reverse gears.

The tractor could be equipped with the following engines:

  • Allis Chalmers gas engine. It is a 4.3 L, 4,293 cm2, (262.0 cu·in) six-cylinder natural aspirated gasoline engine with 90.0 mm (3.54 in) of the cylinder bore and 111.0 mm (4.37 in) of the piston stroke. The compression ratio rating is 8.0:1. This engine produced 75.2 PS (55.3 kW; 74.2 HP) at 2,000 rpm of output power.
  • Allis Chalmers diesel engone. It is a 4.3 L, 4,293 cm2, (262.0 cu·in) six-cylinder turbocharged diesel engine. The cylinder bore is 90.0 mm (3.54 in) and the piston stroke is 111.0 mm (4.37 in). This engine produced 72.5 PS (53.3 kW; 71.5 HP) at 2,000 rpm of output power.

The Allis Chalmers D19 is equipped with power assist steering, differential mechanical band and dry disc brakes, open operator station, and 93.0 liters (24.6 US gal.; 20.5 Imp. gal) fuel tank.

Allis Chalmers D19 Specifications

General Specifications
Model Allis Chalmers D19
Length 3,910 mm (153.9 in)
Width 2,120 mm (83.5 in)
Height 2,260 mm (89 in)
Wheel base 2,600 mm (102.4 in)
Ground clearance 560 mm (22 in)
Weight Gasoline: 3,015 kg (6,645 lbs)
Diesel: 3,100 kg (6,840 lbs)
Fuel tank capacity 93.0 liters (24.6 US gal.; 20.5 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Allis Chalmers
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Gasoline
Displacement 4.3 L, 4,293 cm2, (262.0 cu·in)
Bore and stroke 90.0 mm X 111.0 mm (3.54 in X 4.37 in)
Compression ratio 8.0:1
Horsepower 75.2 PS (55.3 kW; 74.2 HP) at 2,000 rpm
Starter Electric
Oil capacity: 7.0 L (7.4 US. qt, 6.2 Imp. qt.)
Coolant capacity: 14.2 L (15 US. qt, 12.5 Imp. qt.)
Engine
Engine model Allis Chalmers
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 4.3 L, 4,293 cm2, (262.0 cu·in)
Bore and stroke 90.0 mm X 111.0 mm (3.54 in X 4.37 in)
Horsepower 72.5 PS (53.3 kW; 71.5 HP) at 2,000 rpm
Starter Electric
Oil capacity: 7.0 L (7.4 US. qt, 6.2 Imp. qt.)
Coolant capacity: 14.2 L (15 US. qt, 12.5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Power assist
Brakes Differential mechanical band and dry disc
Transmission model Power Director
Transmission type Sliding gear
Gears 8 forward and 2 reverse
Speed Forward: 22.4 kmh (13.9 mph) Reverse: 6.4 (4 mph)
Tires
Front tires Ag: 6.50×16
Rear tires Ag: 15.5×38
Three-Point Hitch
Caterogy II
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type Live
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Valves 1 or 2
