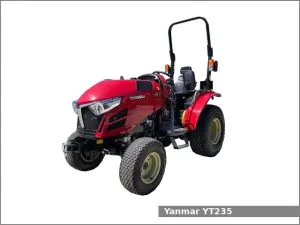

Yanmar YT235

Yanmar YT235The Yanmar YT235 is a 4WD compact utility tractor from the YT2 series. This tractor has been manufactured by Yanmar from 2016. The Yanmar YT235 is equipped with a 1.6 L (100.1 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite (3-range) forward and reverse gears.

The Yanmar YT235 compact utility tractor used the Yanmar 3TNV88 engine. It is a 1.6 L, 1,640 cm2, (100.1 cu·in) three-cylinder natural aspirated diesel engine with 86.0 mm (3.39 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. This engine produced 34.7 PS (25.5 kW; 34.2 HP) at 2,800 rpm of output power.

The Yanmar YT235 is equipped with power steering, wet disc brakes, two-post ROPS or Cab (optional) and 28.0 liters (7.4 US gal.; 6.2 Imp. gal) fuel tank.

Following attachments are available for the Yanmar YT235 compact utility tractor:

  • Mid-mount Yanmar M60F 1,520 mm (60 inch) mowed deck with 3-blade
  • Yanmar YL310 loader
  • Yanmar B75 backhoe

Yanmar YT235 Specifications

General Specifications
Model Yanmar YT235
Length 2,960 mm (116.5 in)
Width 1,480 mm (58.3 in)
Height ROPS: 2,260 mm (89 in)
Cab: 2,120 mm (83.5 in)
Wheelbase 1,650 mm (65 in)
Ground clearance 270 mm (10.6 in)
Weight ROPS: 1,160 kg (2,557 lbs)
Cab: 1,320 kg (2,910 lbs)
Fuel tank capacity 28.0 liters (7.4 US gal.; 6.2 Imp. gal)
Battery Two 12V, CCA 540A
Cabin type Two-post ROPS or Cab (optional)
Engine
Engine model Yanmar 3TNV88
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.6 L, 1,640 cm2, (100.1 cu·in)
Bore and stroke 86.0 mm X 90.0 mm (3.39 in X 3.54 in)
Horsepower 34.7 PS (25.5 kW; 34.2 HP) at 2,800 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 18.8 kmh (11.7 mph) Reverse: 13.2 kmh (8.2 mph)
Tires
Front tires Ag: 6-14
Lawn/turf: 9.5-22
Industrial: 13.6-16
Rear tires Ag: 9.5-22
Lawn/turf: 13.6-16
Industrial: 15-19.6
Three-Point Hitch
Category I
Control type
Lift capacity (at ends) 1,000 kg (2,205 lbs)
PTO (Power take-off shaft)
Middle PTO type
Middle PTO speed 2013 rpm
Rear PTO type
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type
Pump flow 7.1 gpm (26.9 lpm)
Steering flow 4.1 gpm (15.5 lpm)
Total flow 11.2 gpm (42.4 lpm)
