Yanmar SA 221

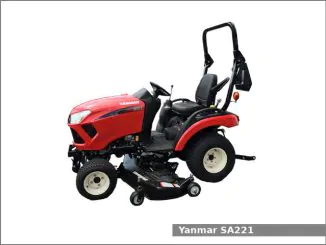

Yanmar SA 221The Yanmar SA 221 is a 4WD sub-compact utility tractor manufactured by Yanmar since 2014. The Yanmar SA 221 is equipped with a 1.0 L (60.3 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite forward and reverse gears.

The Yanmar 221 sub-compact utility tractor used the Yanmar 3TNM74F engine. It is a 1.0 L, 988 cm2, (60.3 cu·in) three-cylinder natural aspirated diesel engine with 74.0 mm (2.91 in) of the cylinder bore and 77.0 mm (3.03 in) of the piston stroke. This engine produced 21.8 PS (16.0 kW; 21.5 HP) at 3,200 rpm of output power.

The Yanmar SA221 is equipped with hydrostatic power steering, wet disc brakes, two-post foldable ROPS and 22.7 liters (6.0 US gal.; 5.0 Imp. gal) fuel tank.

Following attachments are available for the Yanmar SA 221 sub-compact utility tractor:

  • Mid-mount Yanmar 1,520 mm (60 in) mower deck
  • Yanmar YL110 loader

Yanmar SA 221 Specifications

General Specifications
Model Yanmar SA 221
Length 2,590 mm (102 in)
Width 1,200 mm (47.2 in)
Height (ROPS) 2,090 mm (82.3 in)
Wheel base 1,470 mm (57.9 in)
Ground clearance 160 mm (6.3 in)
Weight 697 kg (1,537 lbs)
Fuel tank capacity 22.7 liters (6.0 US gal.; 5.0 Imp. gal)
Battery 12V, CCA 540A
Cabin type Two-post foldable ROPS
Engine model Yanmar 3TNM74F
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.0 L, 988 cm2, (60.3 cu·in)
Bore and stroke 74.0 mm X 77.0 mm (2.91 in X 3.03 in)
Horsepower 21.8 PS (16.0 kW; 21.5 HP) at 3,200 rpm
Torque 53.4 N·m (5.4 kg·m, 39.4 ft·lb) at rpm
Starter Electric
Oil capacity: 2.9 L (3.1 US. qt, 2.6 Imp. qt.)
Coolant capacity: 2.8 L (3 US. qt, 2.5 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc
Transmission model
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 13.8 kmh (8.6 mph) Reverse: 13.8 kmh (8.6 mph)
Transmission oil capacity 15.5 L (4.1 US. gal, 3.4 Imp. gal.)
Front tires Lawn/turf: 18×8.50-10
Industrial: 18×8.50-10
Rear tires Lawn/turf: 26×12.0-12
Industrial: 26×12.0-12
Three-Point Hitch
Category I (limited)
Control type
Lift capacity (at ends) 300 kg (662 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent
Middle PTO speed 2,000 rpm
Rear PTO type Independent with hydraulic clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Pressure 1,890 psi (130.3 bar)
Pump flow 4.3 gpm (16.3 lpm)
Steering flow 3.7 gpm (14 lpm)
