Yanmar YM1610

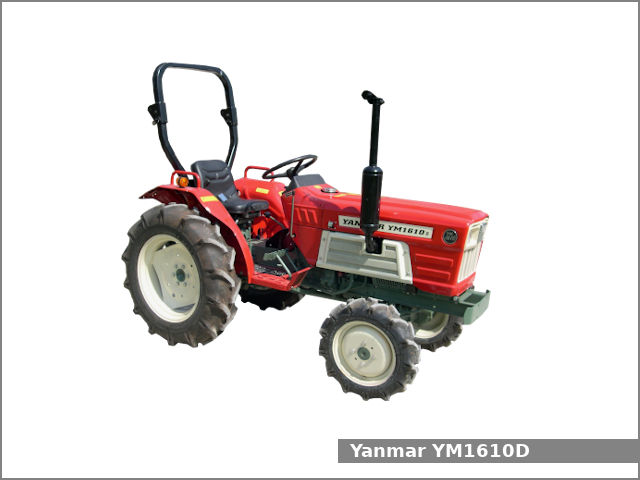

Yanmar YM1610The Yanmar YM1610 is a 2WD (YM1610) or 4WD (YM1610D) compact utility tractor from the YM10 series. This tractor was manufactured by Yanmar from 1980 to 1981. The Yanmar YM1610 is equipped with a 1.0 L (60.7 cu·in) three-cylinder diesel engine and a partial power shift transmission with 9 forward and 3 reverse gears.

The Yanmar YM1610 compact utility tractor used the Yanmar 3T75U engine. It is a 1.0 L, 994 cm2, (60.7 cu·in) three-cylinder natural aspirated diesel engine with 75.0 mm (2.95 in) of the cylinder bore and 75.0 mm (2.95 in) of the piston stroke. This engine produced 16.2 PS (11.9 kW; 16.0 HP) of output power.

Yanmar YM1610 Specifications

General Specifications
Model Yanmar YM1610
Length 2,610 mm (102.8 in)
Width 1,110 mm (43.7 in)
Height 1,750 mm (68.9 in)
Wheel base
Weight 2WD: 680 kg (1,499 lbs)
4WD: 730 kg (1,609 lbs)
Fuel tank capacity
Battery 12V
Cabin type Open operator station
Engine
Engine model Yanmar 3T75U
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.0 L, 994 cm2, (60.7 cu·in)
Bore and stroke 75.0 mm X 75.0 mm (2.95 in X 2.95 in)
Horsepower 16.2 PS (11.9 kW; 16.0 HP)
Starter Electric
Transmission and chassis
Chassis 4×2 2WD (YM1610) or 4×4 MFWD 4WD (YM1610D)
Steering type
Brakes
Transmission model
Transmission type Partial power shift
Gears 9 forward and 3 reverse
Tires
Front tires Ag: 4.00-12 (2WD), 5-14 (4WD)
Rear tires Ag: 8.3-22
Three-Point Hitch
Category I
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type
Rear PTO speed 540 rpm
