Kubota BX23S

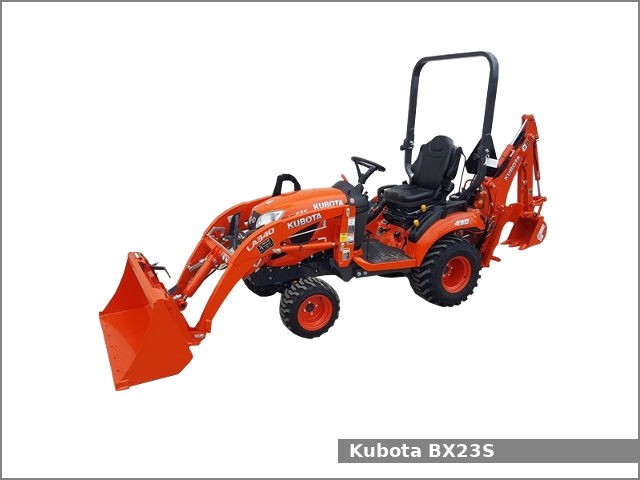

Kubota BX23SThe Kubota BX23S is a 4WD backhoe loader tractor from the BX80 series. This tractor has been manufactured by the Kubota from 2017. The Kubota BX23S is equipped with 0.9 L three-cylinder diesel engine and hydrostatic transmission with High-Low gear shift (2 forward and 2 reverse gears).

The Kubota BX23S backhoe loader tractor used the Kubota D902 engine. It is a 0.9 L, 898 cm2, (54.8 cu·in) three-cylinder natural aspirated diesel engine with 72.0 mm (2.83 in) of the cylinder bore and 73.6 mm (2.9 in) of the piston stroke. This engine produced 23.3 PS (17.1 kW; 23.0 HP) at 3,200 rpm of gross output power and 18 PS (13.2 KW; 17.7 HP) of PTO horsepower.

The Kubota BX23S is equipped with hydrostatic type steering, wet disc type brakes, open operator station with ROPS (Rollover protection structure) and 25.0 liters (6.6 US gal.; 5.5 Imp. gal) fuel tank.

Following attachments are available for Kubota BX23S backhoe loader tractor:

  • Kubota LA340 loader
  • Kubota LA340S loader
  • Kubota BT603 backhoe

Kubota BX23S Specifications

General Specifications
Model Kubota BX23S
Length 2,515 mm (99 in)
Width 1,145 mm (45.1 in)
Height 2,190 mm (86.2 in)
Wheel base 1,400 mm (55.1 in)
Weight 725 kg (1598.3 lbs)
Fuel tank capacity 25.0 liters (6.6 US gal.; 5.5 Imp. gal)
Battery 12V, CCA: 560A
Cabin type Open operator station with ROPS
Engine
Engine model Kubota D902
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 0.9 L, 898 cm2, (54.8 cu·in)
Bore and stroke 72.0 mm X 73.6 mm (2.83 in X 2.9 in)
Horsepower 23.3 PS (17.1 kW; 23.0 HP) at 3,200 rpm
Torque 56.1 N·m (5.7 kg·m, 41.3 ft·lb)
Starter Electric
Oil capacity: 3.3 L (3.49 US. qt, 2.9 Imp. qt.)
Coolant capacity: 3.1 L (3.28 US. qt, 2.73 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic type
Brakes Wet disc type
Transmission model
Transmission type Hydrostatic
Gears High-Low gear shift (2 forward and 2 reverse)
Speed Forward: 13.5 kmh (8.4 mph) Reverse: 10.5 (6.5 mph)
Transmission oil capacity 11.3 L (11.94 US. qt, 9.94 Imp. qt.)
Tires
Front tires Turf/Bar/Industrial: 18×8.50-10
Rear tires Turf/Bar/Industrial: 26×12.00-12
Three-Point Hitch
Caterogy I
Control type
Lift capacity 548 kg (1,210 lbs)
Hydraulic system
Hydraulic type
Pressure 1,850 psi (128 bar)
Pump flow 6.2 gpm (23.5 lpm)
