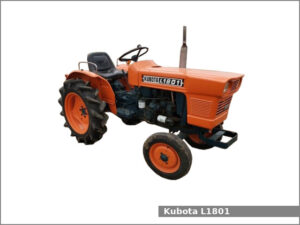

Kubota L1801

Kubota 1801The Kubota L1801 is a 2WD/4WD sub-compact utility tractor from the L01 series. This tractor was manufactured by Kubota from 1976 to 1978. The Kubota L1801 is equipped with a 0.9 L (52.9 cu·in) two-cylinder diesel engine and a gear type transmission with 8 forward and 2 reverse gears (16 forward and 4 reverse gears with creeper).

The Kubota L1801 sub-compact utility tractor used the Kubota Z851 engine. It is a 0.9 L, 867 cm2, (52.9 cu·in) two-cylinder natural aspirated diesel engine with 82.0 mm (3.23 in) of the cylinder bore and 82.0 mm (3.23 in) of the piston stroke. This engine produced 18.2 PS (13.4 kW; 18.0 HP) at 3,000 rpm of output power.

The Kubota L1801 is equipped with manual steering, open operator station and 22.0 liters (5.8 US gal.; 4.8 Imp. gal) fuel tank.

Kubota 1801 Specifications

General Specifications
ModelKubota L1801
Length2,360 mm (92.9 in)
Width1,120 mm (44.1 in)
Height Steering wheel: 1,320 mm (52 in)
Exhaust: 1,940 mm (76.4 in)
Wheel base1,380 mm (54.3 in)
Ground clearance 2WD: 290 mm (11.4 in)
4WD: 240 mm (9.4 in)
Weight 2WD: 702 kg (1,548 lbs)
4WD: 782 kg (1,724 lbs)
Fuel tank capacity22.0 liters (5.8 US gal.; 4.8 Imp. gal)
Cabin typeOpen operator station
Engine modelKubota Z851
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement0.9 L, 867 cm2, (52.9 cu·in)
Bore and stroke82.0 mm X 82.0 mm (3.23 in X 3.23 in)
Horsepower18.2 PS (13.4 kW; 18 HP) at 2,800 rpm
Transmission and chassis
Chassis4×2 2WD (L1801) or 4×4 MFWD 4WD (L1801DT)
Steering typeManual
Transmission model
Transmission typeGear type
Gears8 forward and 2 reverse
Speed Forward: 14.0 kmh (8.7 mph) Reverse: 9.4 kmh (5.8 mph)
Transmission model
Transmission typeCreeper
Gears16 forward and 4 reverse
Front tires Ag: 4.00-12 (2WD), 6.00-14 (4WD)
Rear tires Ag: 8.3/8-22
Three-Point Hitch
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type
Rear PTO speed540 rpm
