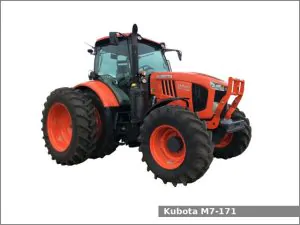

Kubota M7.171

Kubota M7.171The Kubota M7.171 is a 4WD row-crop tractor from the M7 series. This tractor has been manufactured by Kubota in Bierne, France from 2015. The Kubota M7-171 is equipped with a 6.1 L (374.0 cu·in) four-cylinder diesel engine and one of two transmissions: a power shift transmission with 24 forward and reverse gears or a continuously variable transmission transmission with infinite forward and reverse gears.

The Kubota M7-171 row-crop tractor used the Kubota V6108 engine. It is a 6.1 L, 6,129 cm2, (374.0 cu·in) four-cylinder natural aspirated diesel engine with 118.0 mm (4.65 in) of the cylinder bore and 140.0 mm (5.51 in) of the piston stroke. This engine produced 175.4 PS (129.0 kW; 173.0 HP) of output power.

The Kubota M7.171 is equipped with power steering, Cab (standard) and 329.3 liters (87 US gal.; 72.4 Imp. gal) fuel tank.

Kubota M7.171 Specifications

General Specifications
Model Kubota M7.171
Length 4,770 mm (187.8 in)
Width Flange axle: 2,490 mm (98 in)
Bar axle: 2,790 mm (109.8 in)
Height 3,020 mm (118.9 in)
Wheel base
Weight (shipping) 6,848 kg (15,097 lbs)
Fuel tank capacity 329.3 liters (87 US gal.; 72.4 Imp. gal)
Battery 12V
Cabin type Cab (standard)
Engine
Engine model Kubota V6108
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 6.1 L, 6,129 cm2, (374.0 cu·in)
Bore and stroke 118.0 mm X 140.0 mm (4.65 in X 5.51 in)
Horsepower 175.4 PS (129.0 kW; 173.0 HP)
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes
Transmission model ZF
Transmission type Power shift with hydraulic wet disc clutch
Gears 24 forward and reverse
Transmission model ZF
Transmission type Continuously variable transmission
Gears Infinite forward and reverse
Tires
Front tires Ag: 14.9R28
Rear tires Ag: 18.4R38
Three-Point Hitch
Category III
Control type Lower-link electronic draft sensing
Lift capacity (at ends) 6,700 kg (14,775 lbs)
PTO (Power take-off shaft)
Front PTO type Independent
Front PTO speed 1000 rpm
Rear PTO type Independent
Rear PTO speed 540/540E/1000/1000E rpm
Hydraulic system
Hydraulic type Open center or closed center load sensing
Pump flow 21.0 gpm (79.5 lpm)
29.0 gpm (109.8 lpm)
