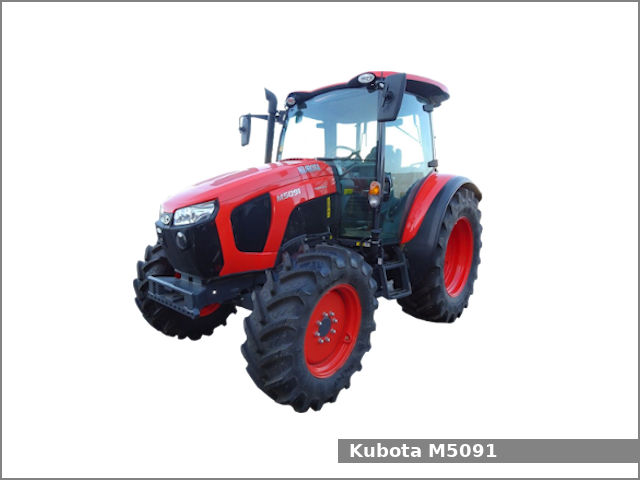

Kubota M5091

Kubota M5091The Kubota M5091 is a 4WD utility tractor from the M5001 series. This tractor was manufactured by Kubota from 2016 to 2020. The Kubota M5091 is equipped with a 3.8 L (230.0 cu·in) four-cylinder diesel engine and a transmission with 36 forward and 36 reverse gears and electro-hydraulic wet disc clutch.

The Kubota M5091 utility tractor used the Kubota V3800 engine. It is a 3.8 L, 3,769 cm2, (230.0 cu·in) four-cylinder diesel engine with 100.0 mm (3.94 in) of the cylinder bore and 120.0 mm (4.72 in) of the piston stroke. This engine produced 76 PS (55.9 kW; 75.0 HP) at 2,600 rpm of output power.

The Kubota M5091 is equipped with power steering, hydraulic wet disc brakes, cab (standard) and 104.8 liters (27.7 US gal.; 23.1 Imp. gal) fuel tank.

Kubota M5091 Specifications

General Specifications
Model Kubota M5091
Length 4,040 mm (159.1 in)
Width 2,190 mm (86.2 in)
Height 2,640 mm (103.9 in)
Wheel base
Weight 3,420 kg (7,540 lbs)
Fuel tank capacity 104.8 liters (27.7 US gal.; 23.1 Imp. gal)
Battery 12V
Cabin type Cab (standard)
Engine model Kubota V3800
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.8 L, 3,769 cm2, (230.0 cu·in)
Bore and stroke 100.0 mm X 120.0 mm (3.94 in X 4.72 in)
Horsepower 76 PS (55.9 kW; 75.0 HP) at 2,600 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Hydraulic wet disc
Differential lock Electro-hydraulic rear, limited slip front
Transmission model
Transmission type
Gears 36 forward and 36 reverse
Front tires Ag: 480/70R34
Rear tires Ag: 360/70R24
Three-Point Hitch
Category II
Control type Position and draft control
Lift capacity (at ends) 4,100 kg (9,041 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/540E or 540/1000 rpm
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
