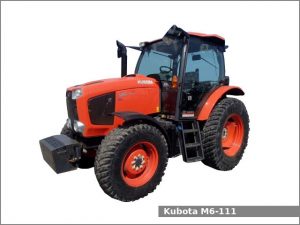

Kubota M6-111

Kubota M6-111The Kubota M6-111 is a 4WD utility tractor from the M6 series. This tractor has been manufactured by Kubota since 2015. The Kubota M6-111 is equipped with a 3.8 L (230.0 cu·in) four-cylinder diesel engine and a partial power shift transmission with 24 forward and 24 reverse gears (32 forward and 32 reverse gears with creeper).

The Kubota M6-111 utility tractor used the Kubota V3800-TI-CRS engine. It is a 3.8 L, 3,769 cm2, (230.0 cu·in) four-cylinder natural aspirated diesel engine with 100.0 mm (3.94 in) of the cylinder bore and 120.0 mm (4.72 in) of the piston stroke. This engine produced 115.7 PS (85.1 kW; 114.1 HP) at 2,600 rpm of output power.

The Kubota M6-111 is equipped with power steering, hydraulic wet disc brakes, Grand X Cab (standard) and 190.0 liters (50.2 US gal.; 41.8 Imp. gal) fuel tank.

Kubota M6-111 Specifications

General Specifications
Model Kubota M6-111
Length 4,200 mm (165.4 in)
Width 2,100 mm (82.7 in)
Height (cab) 2,830 mm (111.4 in)
Wheel base 2,430 mm (95.7 in)
Ground clearance 490 mm (19.3 in)
Weight 4,440 kg (9,789 lbs)
Fuel tank capacity 190.0 liters (50.2 US gal.; 41.8 Imp. gal)
Battery 12V
Cabin type Grand X Cab (standard)
Engine
Engine model Kubota V3800-TI-CRS
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.8 L, 3,769 cm2, (230.0 cu·in)
Bore and stroke 100.0 mm X 120.0 mm (3.94 in X 4.72 in)
Horsepower 115.7 PS (85.1 kW; 114.1 HP) at 2,600 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Hydraulic wet disc
Differential lock Electro-hydraulic front and rear
Transmission model Intelli-Shift
Transmission type Partial power shift electro-hydraulic wet disc clutch
Gears 24 forward and 24 reverse
Tires
Front tires Ag: 13.6R24
Rear tires Ag: 18.4R34
Three-Point Hitch
Category II
Control type Electronic lower-link draft sensing
Lift capacity (at 610 mm/24 in) 3,100 kg (6,836 lbs)
4,285 kg (9,447 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with hydraulic wet disc clutch
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type
Valves 2 to 4
Pump flow 18.7 gpm (70.8 lpm)
Steering flow 16.0 gpm (60.6 lpm)
