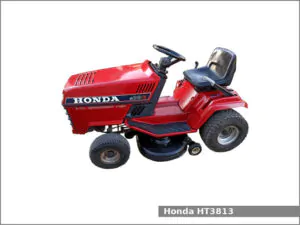

Honda HT3813

Honda HT3813The Honda HT3813 is a 2WD lawn tractor from the HT series. This tractor was manufactured by Honda from 1985 to 1989. The Honda HT3813 is equipped with a 0.4 L (21.8 cu·in) two-cylinder gasoline engine and a gear type transmission with 5 forward and 1 reverse gears.

The Honda HT3813 lawn tractor used the Honda GX360K1 engine. It is a 0.4 L, 358 cm2, (21.8 cu·in) two-cylinder natural aspirated gasoline engine with 58.0 mm (2.28 in) of the cylinder bore and 68.0 mm (2.68 in) of the piston stroke. This engine produced 13.2 PS (9.7 kW; 13.0 HP) at 3,600 rpm of output power.

The Honda HT3813 is equipped with manual steering, brakes, an open operator station, and 7.1 liters (1.9 US gal.; 1.6 Imp. gal) fuel tank.

Honda HT3813 Specifications

General Specifications
ModelHonda HT3813
Length1,750 mm (68.9 in)
Width1,250 mm (49.2 in)
Height1,040 mm (40.9 in)
Wheel base1,160 mm (45.7 in)
Weight247 kg (545 lbs)
Fuel tank capacity7.1 liters (1.9 US gal.; 1.6 Imp. gal)
Battery12V, 30Ah
Cabin typeOpen operator station
Engine modelHonda GX360K1
Engine typeFour-stroke, liquid-cooled
Fuel typeGasoline
Displacement0.4 L, 358 cm2, (21.8 cu·in)
Bore and stroke58.0 mm X 68.0 mm (2.28 in X 2.68 in)
Horsepower13.2 PS (9.7 kW; 13.0 HP) at 3,600 rpm
Oil typeSAE 10W-30, 10W-40
Oil capacity:1.4 L (1.5 US. qt, 1.2 Imp. qt.)
Coolant capacity:1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
Transmission model
Transmission typeGear type
Gears5 forward and 1 reverse
Speed Forward: 8.7 kmh (5.4 mph) Reverse: 2.9 kmh (1.8 mph)
Front tires Lawn/turf: 15×6.00-6
Rear tires Lawn/turf: 18×8.50-8
