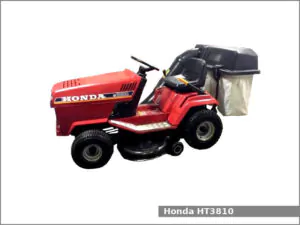

The Honda HT3810 is a 2WD lawn tractor from the HT series. This tractor was manufactured by Hondan from 1985 to 1989. The Honda HT3810 is equipped with a 0.4 L (24.8 cu·in) single-cylinder gasoline engine and a shaft-driven gear tyoe transmission with 5 forward and 1 reverse gears.
The Honda HT3810 lawn tractor used the Honda G400 engine. It is a 0.4 L, 406 cm2, (24.8 cu·in) single-cylinder natural aspirated gasoline engine with 86.0 mm (3.39 in) of the cylinder bore and 71.0 mm (2.8 in) of the piston stroke. This engine produced 10.2 PS (7.5 kW; 10.0 HP) of output power.
The Honda HT3810 is equipped with manual steering, open operator station, and 7.0 liters (1.8 US gal.; 1.5 Imp. gal) fuel tank.
Honda HT3810 Specifications
| General Specifications | |
| Model | Honda HT3810 |
| Length | 1,750 mm (68.9 in) |
| Width | 1,250 mm (49.2 in) |
| Height | 1,040 mm (40.9 in) |
| Wheel base | 1,160 mm (45.7 in) |
| Weight | 247 kg (545 lbs) |
| Fuel tank capacity | 7.0 liters (1.8 US gal.; 1.5 Imp. gal) |
| Battery | 12V, 30Ah |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Honda G400 |
| Engine type | Four-stroke, air-cooled |
| Cylinders | 1 |
| Fuel type | Gasoline |
| Displacement | 0.4 L, 406 cm2, (24.8 cu·in) |
| Bore and stroke | 86.0 mm X 71.0 mm (3.39 in X 2.8 in) |
| Horsepower | 10.2 PS (7.5 kW; 10.1 HP) at rpm |
| Starter | Electric |
| Oil type | SAE 10W-30, 10W-40 |
| Oil capacity: | 1.2 L (1.3 US. qt, 1.1 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Manual |
| Brakes | – |
| Transmission model | – |
| Transmission type | Shaft-driven gear |
| Gears | 5 forward and 1 reverse |
| Speed | Forward: 8.7 kmh (5.4 mph) Reverse: 2.9 kmh (1.8 mph) |
| Tires | |
| Front tires | Lawn/turf: 15×6.00-6 |
| Rear tires | Lawn/turf: 18×8.50-8 |
