Cub Cadet LT1050

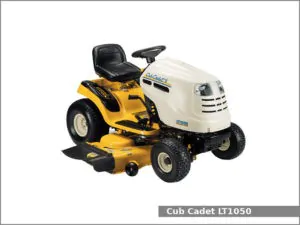

Cub Cadet LT1050The Cub Cadet LT1050 is a 2WD lawn tractor from the LT1000 series. This tractor was manufactured by the Cub Cadet (a part of MTD) from 2005 to 2008. The Cub Cadet LT1050 is equipped with a 0.7 L V-twin gasoline engine and hydrostatic transmission Hydro-Gear 0510 with infinite forward and reverse gears.

The Cub Cadet LT 1050 lawn tractor used the Kohler Command CV730 engine. It is a 0.7 L, 725 cm2, (44.2 cu·in) V-twin naturally aspirated gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. The compression ratio rating is 9.0:1. This engine produced 26.4 PS (19.4 kW; 26.0 HP) of maximum output power and 52.0 N·m (5.3 kg·m, 38.3 ft·lb) of peak torque. The Cub Cadet LT1050 is equipped with manual steering, dry disc brakes, open operator station, and 13.2 liters (3.5 US gal.; 2.9 Imp. gal) fuel tank.

Following attachments are available for Cub Cadet LT 1050 lawn tractor:

  • Mid-mount Cub Cadet: 50 inch (1,270 mm) mower deck with three-blades and manual lift.
  • Front-mount Cub Cadet 190-674: 46 inch (1,160 mm) blade.
  • Front-mount Cub Cadet 190-673: 42 inch (1,060 mm) front-mount two-stage snowblower with manual lift.

Cub Cadet LT1050 Specifications

General Specifications
Model Cub Cadet LT1050
Length 1,730 mm (68.1 in)
Width 1,372 mm (54 in)
Height 1,090 mm (42.9 in)
Wheel base 1,170 mm (46.1 in)
Weight 238 kg (525 lbs)
Fuel tank capacity 13.2 liters (3.5 US gal.; 2.9 Imp. gal)
Battery 12V CCA: 235A
Cabin type Open operator station
Engine
Engine model Kohler Command CV730
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 725 cm2, (44.2 cu·in)
Bore and stroke 83.0 mm X 67.0 mm (3.27 in X 2.64 in)
Compression ratio 9.0:1
Horsepower 26.4 PS (19.4 kW; 26.0 HP)
Torque 52.0 N·m (5.3 kg·m, 38.3 ft·lb)
Starter Electric
Oil type 10W-30
Oil capacity 2.0 L (2.11 US. qt, 1.76 Imp. qt.)
Oil change Every 100 h
Spark plug Champion RC12YC
Spark plug gap 0.76 mm (0.030 in)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Dry disc
Transmission model Hydro-Gear 0510
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.4 kmh (5.2 mph) Reverse: 3.7 (2.3 mph)
Transmission oil capacity 2.25 L (2.38 US. qt, 1.98 Imp. qt.)
Tires
Front tires Lawn/turf: 15x6x6
Rear tires Lawn/turf: 20x10x8
PTO (Power take-off shaft)
Front PTO type Independent with electric clutch
Front PTO spped
