Cub Cadet 800

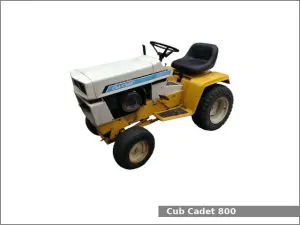

Cub Cadet 800The Cub Cadet 800 is a 2WD garden tractor from the Quietline series. This tractor was manufactured by Cub Cadet (a part of International Harvester) in Louisville, Kentucky, USA from 1974 to 1975. The Cub Cadet 800 is equipped with a 0.3 L (18.6 cu·in) single-cylinder gasoline engine and one of two transmissions: a unsynchronized gear transmission with 3 forward and 1 reverse gears or a creeper with 6 forward and 2 reverse gears.

The Cub Cadet 800 garden tractor used the Kohler K181AQS engine. It is a 0.3 L, 305 cm2, (18.6 cu·in) single-cylinder natural aspirated gasoline engine with 75.0 mm (2.95 in) of the cylinder bore and 70.0 mm (2.76 in) of the piston stroke. This engine produced 8.2 PS (6.0 kW; 8.0 HP) at 3,400 rpm of output power.

The Cub Cadet 800 is equipped with manual steering, dry disc or wet disc (optional) brakes, an open operator station, and 7.6 liters (2 US gal.; 1.7 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet 800 garden tractor:

  • Mid-mount Cub Cadet 30A: 38 in (960 mm) mower deck with 3-blade and manual or electric (optional) lift
  • Mid-mount Cub Cadet 44A: 44 in (1,110 mm) mower deck with 3-blade and manual or electric (optional) lift
  • Mid-mount Cub Cadet 50A: 50 in (1,270 mm) mower deck with 3-blade and manual or electric (optional) lift
  • Front-mount Cub Cadet QA-36A: 36 in (910 mm) snow blower with manual lift
  • Front-mount Cub Cadet QA-42A: 42 in (1,060 mm) snow blower with manual lift

Cub Cadet 800 Specifications

General Specifications
Model Cub Cadet 800
Length 1,750 mm (68.9 in)
Width 830 mm (32.7 in)
Height (steering wheel) 1,040 mm (40.9 in)
Wheel base 1,110 mm (43.7 in)
Ground clearance 150 mm (5.9 in)
Weight (shipping) 265 kg (584 lbs)
Fuel tank capacity 7.6 liters (2 US gal.; 1.7 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Kohler K181AQS
Engine type Four-stroke, air-cooled
Cylinders 1
Fuel type Gasoline
Displacement 0.3 L, 305 cm2, (18.6 cu·in)
Bore and stroke 75.0 mm X 70.0 mm (2.95 in X 2.76 in)
Horsepower 8.2 PS (6.0 kW; 8 HP) at 3,400 rpm
Starter Electric
Oil capacity: 1.2 L (1.3 US. qt, 1.1 Imp. qt.)
Spark plug Champion J-8
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Dry disc or wet disc (optional)
Transmission model
Transmission type Unsynchronized gear with dry disc clutch
Gears 3 forward and 1 reverse
Speed Forward: 11.1 kmh (6.9 mph) Reverse: 4.0 kmh (2.5 mph)
Transmission oil capacity 3.8 L (1 US. gal, 0.8 Imp. gal.)
Transmission model
Transmission type Creeper with dry disc clutch
Gears 6 forward and 2 reverse
Speed Forward: 11.1 kmh (6.9 mph) Reverse: 4.0 kmh (2.5 mph)
Transmission oil capacity 4.0 L (1.1 US. gal, 0.9 Imp. gal.)
Tires
Front tires Lawn/turf: 4.80/4.00-8
Rear tires Lawn/turf: 6-12
Three-Point Hitch
Category Sleeve hitch (optional)
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Front PTO type Independent with electric clutch
Front PTO speed 3,400 rpm
Rear PTO type Transmission
Rear PTO speed 515 rpm
