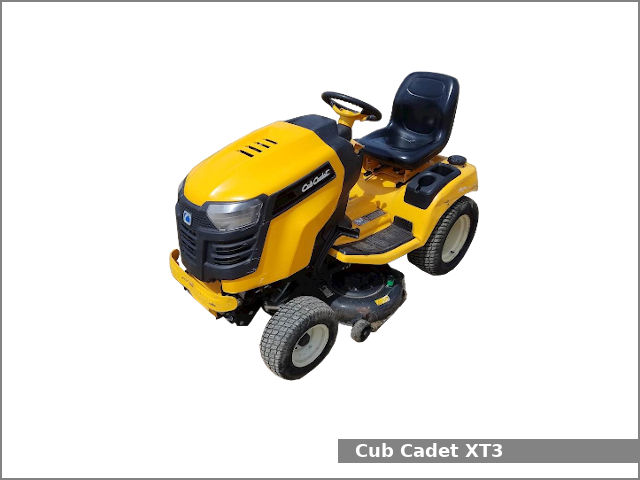

The Cub Cadet XT3 GSX is a 2WD garden tractor from the XT3 Enduro series. This tractor was manufactured by Cub Cadet (a part of MTD) in from 2015 to . The Cub Cadet XT3 GSX is equipped with a 0.7 L (44.0 cu·in) V-twin gasoline engine and a shaft-driven hydrostatic transmission with infinite forward and reverse gears.
The Cub Cadet XT3 GSX garden tractor used the Kohler CH740 engine. It is a 0.7 L, 721 cm2, (44.0 cu·in) V-twin natural aspirated gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. This engine produced 25.3 PS (18.6 kW; 25.0 HP) of output power.
The Cub Cadet XT3 GSX is equipped with electric power steering, disc brakes, an open operator station, and 12.5 liters (3.3 US gal.; 2.7 Imp. gal) fuel tank.
Following attachments are available for the Cub Cadet XT3 GSX garden tractor:
- Mid-mount Cub Cadet 42 in (1,060 mm) mower deck with 2-blade and electric lift
- Mid-mount Cub Cadet 50 in (1,270 mm) mower deck with 3-blade and electric lift
- Mid-mount Cub Cadet 54 in (1,370 mm) mower deck with 3-blade and electric lift
- Mid-mount Cub Cadet 60 in (1,520 mm) mower deck with 3-blade and electric lift
- Front-mount Cub Cadet 46 in (1,160 mm) blade
- Front-mount Cub Cadet 42 in (1,060 mm) three-stage snowblower
Cub Cadet XT3 GSX Specifications
| General Specifications | |
| Model | Cub Cadet XT3 GSX |
| Length | – |
| Width | – |
| Height | – |
| Wheel base | 1,280 mm (50.4 in) |
| Weight | 362 kg (798 lbs) |
| Fuel tank capacity | 12.5 liters (3.3 US gal.; 2.7 Imp. gal) |
| Battery | 12V, CCA 300A |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Kohler CH740 |
| Engine type | Four-stroke, air-cooled, V-twin |
| Cylinders | 2 |
| Fuel type | Gasoline |
| Displacement | 0.7 L, 721 cm2, (44.0 cu·in) |
| Bore and stroke | 83.0 mm X 67.0 mm (3.27 in X 2.64 in) |
| Horsepower | 25.3 PS (18.6 kW; 25.0 HP) |
| Starter | Electric |
| Oil capacity: | 1.8 L (1.9 US. qt, 1.6 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Electric power |
| Brakes | Disc |
| Differential lock | Mechanical rear |
| Transmission model | Hydro-Gear BDU-10 |
| Transmission type | Shaft-driven hydrostatic |
| Gears | Infinite forward and reverse |
| Speed | Forward: 10.5 kmh (6.5 mph) Reverse: 5.6 kmh (3.5 mph) |
| Tires | |
| Front tires | Lawn/turf: 16×6.5-8 |
| Rear tires | Lawn/turf: 23×10.5-8 |
| PTO (Power take-off shaft) | |
| Front PTO type | Independent with electric clutch |
| Front PTO speed | – |
