Cub Cadet 3206

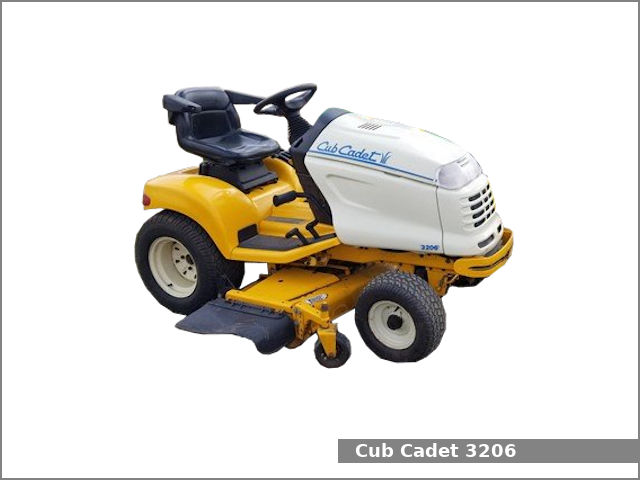

Cub Cadet 3206The Cub Cadet 3206 is a 2WD garden tractor from the 3000 series. This tractor was manufactured by Cub Cadet (a part of MTD) from 2001 to 2002. The Cub Cadet 3206 is equipped with a 0.7 L (39.8 cu·in) two-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet 3206 garden tractor used the Kohler Command CH22S engine. It is a 0.7 L, 652 cm2, (39.8 cu·in) two-cylinder natural aspirated gasoline engine with 80.0 mm (3.15 in) of the cylinder bore and 65.0 mm (2.56 in) of the piston stroke. The compression ratio rating is 8.5:1. This engine produced 22.3 PS (16.4 kW; 22.0 HP) at 3,600 rpm of output power.

The Cub Cadet 3206 is equipped with power steering, external disk brakes, an open operator station, and 17.0 liters (4.5 US gal.; 3.7 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet 3206 garden tractor:

  • Mid-mount Cub Cadet 190-209: 44 in (1,110 mm) mower deck with 3-blade and hydraulic lift
  • Mid-mount Cub Cadet 190-289: 48 in (1,210 mm) mower deck with 3-blade and hydraulic lift
  • Mid-mount Cub Cadet 190-290: 54 in (1,370 mm) mower deck with 3-blade and hydraulic lift
  • Front-mount Cub Cadet 190-290: 54 in (1,370 mm) blade
  • Front-mount Cub Cadet 190-353: 45 in (1,140 mm) two-stage snow blower

Cub Cadet 3206 Specifications

General Specifications
Model Cub Cadet 3206
Length 1,870 mm (73.6 in)
Width 1,060 mm (41.7 in)
Height 1,100 mm (43.3 in)
Wheel base 1,250 mm (49.2 in)
Ground clearance 150 mm (5.9 in)
Weight 365 kg (805 lbs)
Fuel tank capacity 17.0 liters (4.5 US gal.; 3.7 Imp. gal)
Battery 12V, CCA 435A
Cabin type Open operator station
Engine
Engine model Kohler Command CH22S
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 652 cm2, (39.8 cu·in)
Bore and stroke 80.0 mm X 65.0 mm (3.15 in X 2.56 in)
Compression ratio 8.5:1
Horsepower 22.3 PS (16.4 kW; 22.0 HP) at 3,600 rpm
Starter Electric
Oil capacity: 1.9 L (2 US. qt, 1.7 Imp. qt.)
Spark plug Champion RC12YC
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes External disk
Differential lock Standard
Transmission model
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 12.9 kmh (8 mph) Reverse: 6.4 kmh (4 mph)
Transmission oil capacity 5.7 L (1.5 US. gal, 1.3 Imp. gal.)
Tires
Front tires Ag: 16×7.5-8
Rear tires Ag: 24×10.5-12
Three-Point Hitch
Category 0 (optional)
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type Independent with E-Vac clutch
Rear PTO speed
