Cub Cadet GTX 1054

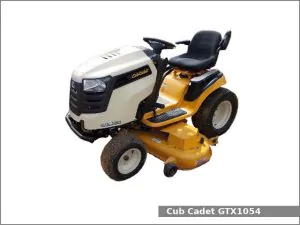

Cub Cadet GTX 1054The Cub Cadet GTX 1054 is a 2WD lawn tractor from the LTX 1000 series. This tractor was manufactured by Cub Cadet (a part of MTD) from 2010 to 2014. The Cub Cadet GTX 1054 is equipped with a 0.7 L (44.2 cu·in) two-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet GTX1054 lawn tractor used the Kohler Courage SV740 engine. It is a 0.7 L, 725 cm2, (44.2 cu·in) two-cylinder natural aspirated gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. This engine produced 27.3 PS (20.1 kW; 27.0 HP) at 3,600 rpm of output power.

The Cub Cadet GTX 1054 is equipped with manual sector and pinion steering, an open operator station, and 13.2 liters (3.5 US gal.; 2.9 Imp. gal) fuel tank.

Cub Cadet GTX 1054 Specifications

General Specifications
Model Cub Cadet GTX1054
Length 1,720 mm (67.7 in)
Width –
Height –
Wheel base 1,240 mm (48.8 in)
Weight 266 kg (586 lbs)
Fuel tank capacity 13.2 liters (3.5 US gal.; 2.9 Imp. gal)
Battery 12V, CCA 325A
Cabin type Open operator station
Engine
Engine model Kohler Courage SV740
Engine type Four-stroke, air-cooled
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 725 cm2, (44.2 cu·in)
Bore and stroke 83.0 mm X 67.0 mm (3.27 in X 2.64 in)
Horsepower 27.3 PS (20.1 kW; 27 HP) at 3,600 rpm
Starter Electric
Oil capacity: 1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Spark plug Champion RC12YC
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual sector and pinion
Brakes –
Transmission model –
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.4 kmh (5.2 mph) Reverse: 3.7 kmh (2.3 mph)
Transmission oil capacity 2.0 L (2.11 US.qts, 1.76 Imp. qts)
Tires
Front tires Lawn/turf: 16×7.5
Rear tires Lawn/turf: 23×10.5
PTO (Power take-off shaft)
Front PTO type Independent with electric clutch
Front PTO speed –
