Cub Cadet 1100

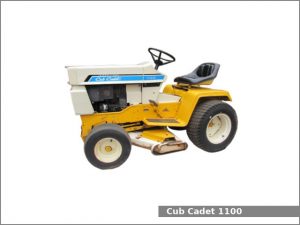

Cub Cadet 1100The Cub Cadet 1100 is a 2WD garden tractor from the Quietline series. This tractor was manufactured by Cub Cadet (a part of International Harvester) in Louisville, Kentucky, USA from 1974 to 1979. The Cub Cadet 1100 is equipped with a 0.4 L (24.3 cu·in) single-cylinder gasoline engine and a gear type transmission with 4 forward and 1 reverse gears.

The Cub Cadet 1100 garden tractor used the Briggs & Stratton 253417 engine. It is a 0.4 L, 399 cm2, (24.3 cu·in) single-cylinder natural aspirated gasoline engine with 87.0 mm (3.43 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. This engine produced 11.2 PS (8.2 kW; 11.0 HP) at 3,400 rpm of output power and 22.8 N·m (2.3 kg·m, 16.8 ft·lb) at 1,575 rpm of torque.

The Cub Cadet 1100 is equipped with manual steering, dry disc brakes, open operator station and 7.6 liters (2 US gal.; 1.7 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet 1100 garden tractor:

  • Mid-moint Cub Cadet 38A 960 mm (38 inches) mower deck with 3 blade and manual or electric (optional) lift
  • Mid-moint Cub Cadet 44A 1,110 mm (44 inches) mower deck with 3 blade and manual or electric (optional) lift
  • Mid-moint Cub Cadet 50A 1,270 mm (50 inches) mower deck with 3 blade and manual or electric (optional) lift
  • Front-moint Cub Cadet QA-36A 910 mm (36 inches) snow blower with manual lift
  • Front-moint Cub Cadet QA-42A 1,060 mm (42 inches) snow blower with manual lift

Cub Cadet 1100 Specifications

General Specifications
Model Cub Cadet 1100
Length 1,750 mm (68.9 in)
Width 950 mm (37.4 in)
Height (steering wheel) 1,070 mm (42.1 in)
Wheel base 1,110 mm (43.7 in)
Ground clearance 190 mm (7.5 in)
Weight 258 kg (570 lbs)
Fuel tank capacity 7.6 liters (2 US gal.; 1.7 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Briggs & Stratton 253417
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.4 L, 399 cm2, (24.3 cu·in)
Bore and stroke 87.0 mm X 67.0 mm (3.43 in X 2.64 in)
Horsepower 11.2 PS (8.2 kW; 11.0 HP) at 3,400 rpm
Torque 22.8 N·m (2.3 kg·m, 16.8 ft·lb) at 1,575 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Dry disc
Transmission model Peerless gear
Transmission type Gear type
Gears 4 forward and 1 reverse
Speed Forward: 8.4 kmh (5.2 mph) Reverse: 4.4 kmh (2.7 mph)
Tires
Front tires Lawn/turf: 16×6.50-8
Rear tires Lawn/turf: 23×8.50-12
Three-Point Hitch
Category Sleeve hitch
Control type
Lift capacity (at ends) kg (0 lbs)
PTO (Power take-off shaft)
Front PTO type Independent with electric clutch
Front PTO speed 3600 rpm
