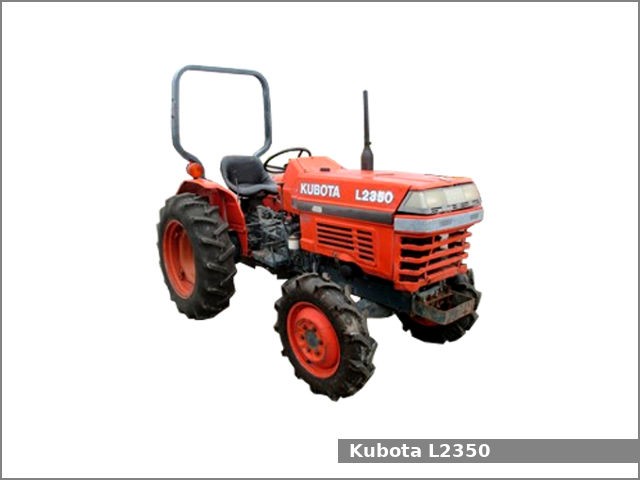

Kubota L2350

Kubota L2350The Kubota L2350 is a 2WD (L2350F) or 4WD (L2350DT) compact utility tractor from the L50 series. This tractor was manufactured by the Kubota from 1991 to 1998. The Kubota L2350 is equipped with 1.1 L three-cylinder diesel engine and gear type transmission with dry disc clutch (8 forward and 2 reverse gears).

The Kubota L2350 compact utility tractor used the Kubota D1102 engine. It is a 1.1 L, 1,115 cm2, (68.0 cu·in) three-cylinder natural aspirated diesel engine with 76.0 mm (2.99 in) of the cylinder bore and 82.0 mm (3.23 in) of the piston stroke. This engine produced 25.4 PS (18.7 kW; 25.0 HP) of gross horsepower and 20.8 PS (15.3 KW; 20.5 HP) of PTO output power. The Kubota L2350 is equipped with manual or power (option) steering, wet disc type brakes, open operator station with two-post ROPS and 29.0 liters (7.7 US gal.; 6.4 Imp. gal) fuel tank.

Following attachments are available for Kubota L2350 compact utility tractor:

  • Kubota LB400 loader
  • Kubota LA450S loader

Kubota L2350 Specifications

General Specifications
Model Kubota L2350
Length 2,640 mm (103.9 in)
Width 1,270 mm (50 in)
Height 2,110 mm (83.1 in)
Wheel base L2350F 2WD: 1,555 mm (61.2 in)
L2350DT 4WD: 1,565 mm (61.6 in)
Weight L2350F 2WD: 890 kg (1,962 lbs)
L2350DT 4WD: 1,000 kg (2,205 lbs)
Fuel tank capacity 29.0 liters (7.7 US gal.; 6.4 Imp. gal)
Battery 12V, CCA: 490A
Cabin type Open operator station with two-post ROPS
Engine
Engine model Kubota D1102
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.1 L, 1,115 cm2, (68.0 cu·in)
Bore and stroke 76.0 mm X 82.0 mm (2.99 in X 3.23 in)
Horsepower 25.4 PS (18.7 kW; 25.0 HP)
Torque 77.5 N·m (7.9 kg·m, 57.1 ft·lb)
Starter Electric
Oil capacity: 6.3 L (6.66 US. qt, 5.54 Imp. qt.)
Coolant capacity: 6.0 L (6.34 US. qt, 5.28 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Manual or power (option)
Brakes Wet disc type
Transmission model
Transmission type Gear type with dry disc clutch
Gears 8 forward and 2 reverse
Speed Forward: 17.8 kmh (11.1 mph) Reverse: 8.7 (5.4 mph)
Transmission oil capacity 28.0 L (29.59 US. qt, 24.64 Imp. qt.)
Tires
Front tires Ag: 4.00-15 (2WD), 6-14 (4WD)
Rear tires Ag: 9.5-24
Three-Point Hitch
Caterogy I
Control type Position control
Lift capacity 850 kg (1,874 lbs)
PTO (Power take-off shaft)
Rear PTO type Live
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 28.0 L (29.59 US. qt, 24.64 Imp. qt.)
Pressure 2205 psi (152 bar)
