Cub Cadet 5254

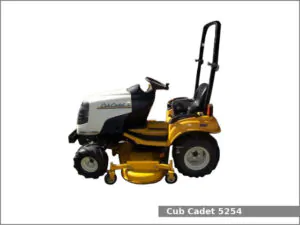

Cub Cadet 5254The Cub Cadet 5254 is a 4WD sub-compact utility tractor from the 5000 series. This tractor was manufactured by Cub Cadet from 2004 to 2008. The Cub Cadet 5254 is equipped with a 0.7 L (45.5 cu·in) two-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet 5254 sub-compact utility tractor used the Kawasaki FD750D engine. It is a 0.7 L, 745 cm2, (45.5 cu·in) two-cylinder natural aspirated gasoline engine with 78.0 mm (3.07 in) of the cylinder bore and 78.0 mm (3.07 in) of the piston stroke. The compression ratio rating is 8.5:1. This engine produced 25.3 PS (18.6 kW; 25.0 HP) at 3,600 rpm of output power.

The Cub Cadet 5254 is equipped with hydrostatic power steering, external dual disc brakes, an open operator station, and 21.2 liters (5.6 US gal.; 4.7 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet 5254 sub-compact utility tractor:

  • Mid-mount Cub Cadet 1,370 mm (54 in) mower deck
  • Mid-mount Cub Cadet 1,520 mm (60 in) mower deck
  • Front-mount Cub Cadet 1,520 mm (60 in) blade
  • Front-mount Cub Cadet 1,210 mm (48 in) snowblower
  • Front-mount Cub Cadet 812 loader

Cub Cadet 5254 Specifications

General Specifications
Model Cub Cadet 5254
Length 2,150 mm (84.6 in)
With hitch: 2,610 mm (102.8 in)
Width 1,140 mm (44.9 in)
Height (ROPS) 2,000 mm (78.7 in)
Wheel base 1,390 mm (54.7 in)
Ground clearance 120 mm (4.7 in)
Weight 575 kg (1,268 lbs)
Fuel tank capacity 21.2 liters (5.6 US gal.; 4.7 Imp. gal)
Battery 12V, CCA 500A
Cabin type Open operator station
Engine
Engine model Kawasaki FD750D
Engine type Four-stroke, liquid-cooled
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 745 cm2, (45.5 cu·in)
Bore and stroke 78.0 mm X 78.0 mm (3.07 in X 3.07 in)
Compression ratio 8.5:1
Horsepower 25.3 PS (18.6 kW; 25.0 HP) at 3,600 rpm
Torque 58.3 N·m (5.9 kg·m, 43 ft·lb) at 2,400 rpm
Starter Electric
Oil capacity: 2.0 L (2.1 US. qt, 1.8 Imp. qt.)
Coolant capacity: 3.3 L (3.5 US. qt, 2.9 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes External dual disc
Differential lock Mechanical rear
Transmission model
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 12.9 kmh (8 mph) Reverse: 6.4 kmh (4 mph)
Transmission oil capacity 18.9 L (5 US. gal, 4.2 Imp. gal.)
Tires
Front tires Ag: 18×9.5-8
Lawn/turf: 18×8.5-8
Rear tires Ag: 26×12-12
Lawn/turf: 26×12-12
Three-Point Hitch
Category I
Control type
Lift capacity (at ends) 465 kg (1,025 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent
Middle PTO speed 2,000 rpm
Rear PTO type Independent with electric clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 18.9 L (5 US. gal, 4.2 Imp. gal.)
Pressure 1500 psi (103.4 bar)
Valves 1 (optional)
Total flow 5.5 gpm (20.8 lpm)
