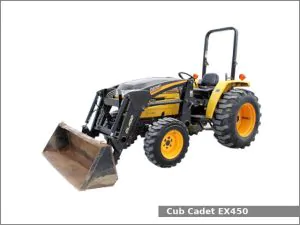

Cub Cadet Ex450

Cub Cadet Ex450The Cub Cadet Ex450 is a 4WD compact utility tractor from the Ex series. This tractor was manufactured by Yanmar for distributor Cub Cadet from 2009 to 2011. The Cub Cadet Ex450 is equipped with a 2.2 L (133.6 cu·in) four-cylinder diesel engine and a synchronized shuttle transmission with 9 forward and 9 reverse gears.

The Cub Cadet Ex450 compact utility tractor used the Yanmar engine. It is a 2.2 L, 2,189 cm2, (133.6 cu·in) four-cylinder natural aspirated diesel engine with 88.0 mm (3.46 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. This engine produced 45.7 PS (33.6 kW; 45.0 HP) at 2,700 rpm of output power.

The Cub Cadet Ex450 is equipped with hydrostatic power steering, wet disc brakes, two-post ROPS, and 42.8 liters (11.3 US gal.; 9.4 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet Ex450 compact utility tractor:

  • Cub Cadet CL400 loader
  • Cub Cadet CB85 backhoe

Cub Cadet Ex450 Specifications

General Specifications
Model Cub Cadet Ex450
Length 3,220 mm (126.8 in)
Width 1,820 mm (71.7 in)
Height
Wheel base 1,820 mm (71.7 in)
Ground clearance 340 mm (13.4 in)
Weight (operating) 1,587 kg (3,499 lbs)
Fuel tank capacity 42.8 liters (11.3 US gal.; 9.4 Imp. gal)
Battery 12V
Cabin type Two-post ROPS
Engine
Engine model Yanmar
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.2 L, 2,189 cm2, (133.6 cu·in)
Bore and stroke 88.0 mm X 90.0 mm (3.46 in X 3.54 in)
Horsepower 45.7 PS (33.6 kW; 45.0 HP) at 2,700 rpm
Starter Electric
Oil capacity: 5.3 L (5.6 US. qt, 4.7 Imp. qt.)
Coolant capacity: 4.4 L (4.6 US. qt, 3.9 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc
Front axle 7.6 L (8.0 US.qts, 6.7 Imp. qts)
Transmission model
Transmission type Synchronized shuttle
Gears 9 forward and 9 reverse
Transmission oil capacity 26.5 L (7 US. gal, 5.8 Imp. gal.)
Tires
Front tires Ag: 8-16
Lawn/turf: 27×10.5-15
Industrial: 10-16.5
Rear tires Ag: 14.9-24
Lawn/turf: 44×18-20
Industrial: 17.5-24
Three-Point Hitch
Category I
Control type Position control
Lift capacity (at 610 mm/24 in) 1,117 kg (2,463 lbs)
PTO (Power take-off shaft)
Rear PTO type Live
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Pump flow 8.5 gpm (32.2 lpm)
Steering flow 4.5 gpm (17 lpm)
Total flow 13.0 gpm (49.2 lpm)
