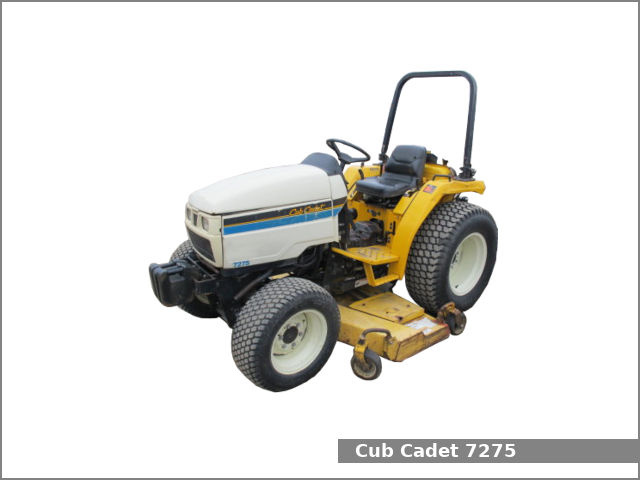

Cub Cadet 7275

Cub Cadet 7275The Cub Cadet 7275 is a 4WD compact utility tractor from the 7000 series. This tractor was manufactured by Mitsubishi for distributor Cub Cadet from 1996 to 1997. The Cub Cadet 7275 is equipped with a 1.5 L (91.3 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite (3-range) forward and reverse gears.

The Cub Cadet 7275 compact utility tractor used the Mitsubishi K3M engine. It is a 1.5 L, 1,496 cm2, (91.3 cu·in) three-cylinder natural aspirated diesel engine with 84.0 mm (3.31 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. The compression ratio rating is 18.0:1. This engine produced 27.3 PS (20.1 kW; 27.0 HP) at 2,500 rpm of output power.

The Cub Cadet 7275 is equipped with hydrostatic power steering, wet disc brakes, Two-post foldable ROPS and 29.9 liters (7.9 US gal.; 6.6 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet 7275 compact utility tractor:

  • Mid-mount Cub Cadet 401 1,520 mm (60 inches) mower deck with 3-blade
  • Mid-mount Cub Cadet 404 1,820 mm (72 inches) mower deck with 3-blade
  • Cub Cadet 417 loader
  • Cub Cadet 408 backhoe

Cub Cadet 7275 Specifications

General Specifications
Model Cub Cadet 7275
Length 2,920 mm (115 in)
Width 1,370 mm (53.9 in)
Height (ROPS) 2,140 mm (84.3 in)
Wheelbase /td>

1,700 mm (66.9 in)
Weight 1,217 kg (2,683 lbs)
Fuel tank capacity 30.0 liters (7.9 US gal.; 6.6 Imp. gal)
Battery 12V
Cabin type Two-post foldable ROPS
Engine
Engine model Mitsubishi K3M
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.5 L, 1,496 cm2, (91.3 cu·in)
Bore and stroke 84.0 mm X 90.0 mm (3.31 in X 3.54 in)
Compression ratio 18.0:1
Horsepower 27.3 PS (20.1 kW; 27.0 HP) at 2,500 rpm
Starter Electric
Oil type SAE 10W-30, 15W-40
Oil capacity: 4.7 L (5 US. qt, 4.1 Imp. qt.)
Coolant capacity: 6.3 L (6.7 US. qt, 5.5 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc
Differential lock Rear standard
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Transmission oil capacity 22.0 L (5.8 US. gal, 4.8 Imp. gal.)
Tires
Front tires Ag: 7.2-16
Lawn/turf: 27×10.50-15
Rear tires Ag: 12.4-24
Lawn/turf: 41×14.00-20
Three-Point Hitch
Category I
Control type
Lift capacity (at ends) 1,000 kg (2,205 lbs)
PTO (Power take-off shaft)
Middle PTO type Live
Middle PTO speed 2000 rpm
Rear PTO type Live
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2133 psi (147.1 bar)
Pump flow 7.3 gpm (27.6 lpm)
Steering flow 3.2 gpm (12.1 lpm)
