Cub Cadet 7260

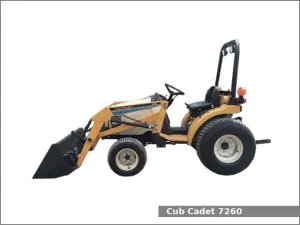

Cub Cadet 7260The Cub Cadet 7260 is a 4WD compact utility tractor from the 7000 series. This tractor was manufactured by Cub Cadet from 1998 to 2003. The Cub Cadet 7260 is equipped with a 1.3 L (80.4 cu·in) three-cylinder diesel engine and a partially synchronized gear transmission with 9 forward and 3 reverse gears.

The Cub Cadet 7260 compact utility tractor used the Mitsubishi engine. It is a 1.3 L, 1,318 cm2, (80.4 cu·in) three-cylinder natural aspirated diesel engine with 78.0 mm (3.07 in) of the cylinder bore and 92.0 mm (3.62 in) of the piston stroke. The compression ratio rating is 22.0:1. This engine produced 26.4 PS (19.4 kW; 26.0 HP) at 2,600 rpm of output power.

The Cub Cadet 7260 is equipped with hydrostatic power steering, mechanical wet disc brakes, two-post foldable ROPS, and 30,0 liters (7.9 US gal.; 6.6 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet 7260 compact utility tractor:

  • Mid-mount Cub Cadet 60 in (1,520 mm) mower deck
  • Mid-mount Cub Cadet 72 in (1,820 mm) mower deck
  • Front-mount Cub Cadet 476 loader
  • Cub Cadet 408 backhoe

Cub Cadet 7260 Specifications

General Specifications
Model Cub Cadet 7260
Length 2,920 mm (115 in)
Width 1,310 mm (51.6 in)
Height (ROPS) 2,120 mm (83.5 in)
Wheel base 1,650 mm (65 in)
Ground clearance 300 mm (11.8 in)
Weight 1,050 kg (2,315 lbs)
Fuel tank capacity 30.0 liters (7.9 US gal.; 6.6 Imp. gal)
Battery 12V, CCA 500A
Cabin type Two-post foldable ROPS
Engine
Engine model Mitsubishi
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.3 L, 1,318 cm2, (80.4 cu·in)
Bore and stroke 78.0 mm X 92.0 mm (3.07 in X 3.62 in)
Compression ratio 22.0:1
Horsepower 26.4 PS (19.4 kW; 26.0 HP) at 2,600 rpm
Starter Electric
Oil type SAE 5W-20, 10W-30
Oil capacity: 4.2 L (4.4 US. qt, 3.7 Imp. qt.)
Coolant capacity: 6.3 L (6.7 US. qt, 5.5 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Mechanical wet disc
Differential lock Mechanical
Front axle 4.0 L (4.23 US.qts, 3.52 Imp. qts)
Transmission model
Transmission type Partially synchronized gear with two-stage dry disc clutch
Gears 9 forward and 3 reverse
Transmission oil capacity 24.0 L (6.3 US. gal, 5.3 Imp. gal.)
Tires
Front tires Ag: 7-14
Lawn/turf: 25×8.5-14
Rear tires Ag: 9.5-24
Lawn/turf: 13.6-16
Three-Point Hitch
Category I
Control type Position control with optional draft control
Lift capacity (at 610 mm/24 in) 750 kg (1,655 lbs)
PTO (Power take-off shaft)
Middle PTO type Live
Middle PTO speed 2,000 rpm
Rear PTO type Live
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2133 psi (147.1 bar)
Valves 1 or 2
Pump flow 7.8 gpm (29.5 lpm)
