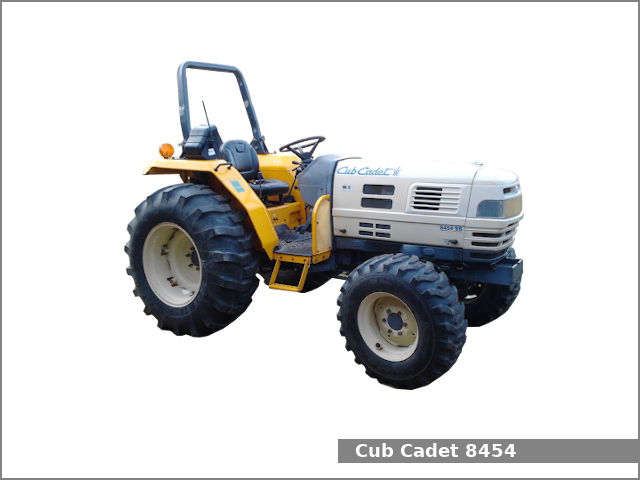

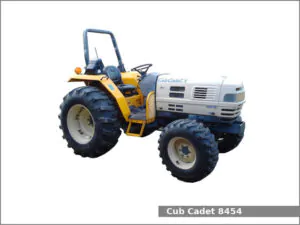

Cub Cadet 8454

Cub Cadet 8454The Cub Cadet 8454 is a 4WD compact utility tractor from the 8000 series. This tractor was manufactured by Daedong for distributor Cub Cadet from 2004 to 2007. The Cub Cadet 8454 is equipped with a 2.2 L (134.0 cu·in) four-cylinder diesel engine and a synchronized shuttle transmission with 8 forward and 8 reverse gears and dry disc clutch.

The Cub Cadet 8454 compact utility tractor used the Daedong engine. It is a 2.2 L, 2,196 cm2, (134.0 cu·in) four-cylinder natural aspirated diesel engine. This engine produced 45.7 PS (33.6 kW; 45.0 HP) at 2,600 rpm of output power.

The Cub Cadet 8454 is equipped with hydrostatic power steering, wet disc brakes, two-post foldable ROPS, and 43.5 liters (11.5 US gal.; 9.6 Imp. gal) fuel tank.

Cub Cadet 8454 Specifications

General Specifications
Model Cub Cadet 8454
Length 3,310 mm (130.3 in)
Width 1,540 mm (60.6 in)
Height (ROPS) 2,420 mm (95.3 in)
Wheel base 1,810 mm (71.3 in)
Weight 2,025 kg (4,464 lbs)
Fuel tank capacity 43.5 liters (11.5 US gal.; 9.6 Imp. gal)
Battery 12V
Cabin type Two-post foldable ROPS
Engine
Engine model Daedong
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.2 L, 2,196 cm2, (134.0 cu·in)
Bore and stroke
Horsepower 45.7 PS (33.6 kW; 45.1 HP) at 2,600 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc
Differential lock Standard
Transmission model
Transmission type Synchronized shuttle with dry disc clutch
Gears 8 forward and 8 reverse
Tires
Front tires Ag: 9.5-16
Lawn/turf: 29×12.5×15
Industrial: 12×16.5
Rear tires Ag: 14.9-24
Lawn/turf: 21.5×16.1
Industrial: 17.5×24
Three-Point Hitch
Category II/I
Control type Position and draft control
Lift capacity (at ends) 1,385 kg (3,055 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Pump flow 8.2 gpm (31 lpm)
Steering flow 4.9 gpm (18.5 lpm)
Total flow 13.1 gpm (49.6 lpm)
