Massey Ferguson 492

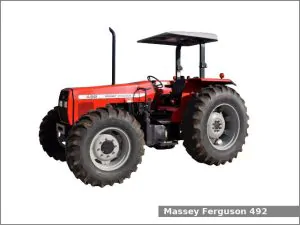

Massey Ferguson 492The Massey Ferguson 492 is a 2WD/4WD utility tractor from the 400 series. This tractor was manufactured by Massey Ferguson in Brazil from 2004 to 2006. The Massey Ferguson 492 is equipped with a 4.4 L (268.6 cu·in) four-cylinder diesel engine and a partially synchronized transmission with 12 forward and 4 reverse gears.

The MF 492 utility tractor used the Perkins 1104C-44T engine. It is a 4.4 L, 4,401 cm2, (268.6 cu·in) four-cylinder turbocharged diesel engine with 105.0 mm (4.13 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 18.2:1. This engine produced 100.4 PS (73.8 kW; 99.0 HP) at 2,200 rpm of output power and 397.3 N·m (40.5 kg·m, 292.8 ft·lb) at 1,300 rpm of torque.

The Massey Ferguson 492 is equipped with power steering, independent hydraulic wet disc brakes, flat-deck platform with two-post folding ROPS or cab (optional) and 109.8 liters (29 US gal.; 24.2 Imp. gal) fuel tank.

Following attachments are available for the Massey Ferguson 492 utility tractor:

  • Massey Ferguson 1065 loader
  • Massey Ferguson 1070 loader

Massey Ferguson 492 Specifications

General Specifications
Model Massey Ferguson 492
Length 3,930 mm (154.7 in)
Width 2,030 mm (79.9 in)
Height ROPS: 2,600 mm (102.4 in)
Cab: 2,690 mm (105.9 in)
Wheelbase 2360 mm (93.0 in)
Ground clearance (drawbar) 370 mm (14.6 in)
Weight (shipping) 2WD ROPS: 3,090 kg (6,812 lbs)
4WD ROPS: 3,300 kg (7,275 lbs)
2WD Cab: 3,430 kg (7,560 lbs)
4WD Cab: 3,640 kg (8,025 lbs)
Fuel tank capacity 109.8 liters (29 US gal.; 24.2 Imp. gal)
Battery 12V
Cabin type Flat-deck platform with two-post folding ROPS or cab (optional)
Engine
Engine model Perkins 1104C-44T
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.4 L, 4,401 cm2, (268.6 cu·in)
Bore and stroke 105.0 mm X 127.0 mm (4.13 in X 5 in)
Compression ratio 18.2:1
Horsepower 100.4 PS (73.8 kW; 99.0 HP) at 2,200 rpm
Torque 397.3 N·m (40.5 kg·m, 292.8 ft·lb) at 1,300 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Independent hydraulic wet disc
Final drive Planetary
Transmission model
Transmission type Partially synchronized with dry disc clutch
Gears 12 forward and 4 reverse
Speed Forward: 33.9 kmh (21.1 mph) Reverse: 17.4 kmh (10.8 mph)
Tires
Front tires Ag: 14.9-24
Rear tires Ag: 18.4-34
Three-Point Hitch
Category II
Control type Position control and top-link draft sensing
Lift capacity (at 610 mm/24 in) 1,905 kg (4,200 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with hydraulic wet disc clutch
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type Open center
Valves 2 or 3
Pump flow 3-point: 7.0 gpm (26.5 lpm)
Aux: 10.0 gpm (37.9 lpm)
SCV flow 17.0 gpm (63.3 lpm)
Steering flow 8.0 gpm (30.3 lpm)
Total flow 25.0 gpm (94.6 lpm)
