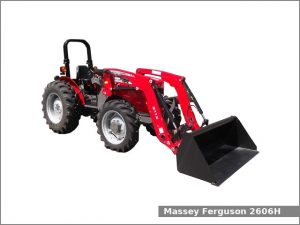

Massey Ferguson 2606H

Massey Ferguson 2606HThe Massey Ferguson 2606H is a 2WD/4WD utility tractor from the 2600H series. This tractor has been manufactured by Massey Ferguson since 2016. The Massey Ferguson 2606H is equipped with a 2.6 L (157.9 cu·in) three-cylinder diesel engine and a sync shuttle transmission with 8 forward and 8 reverse gears.

The Massey Ferguson 2606H utility tractor used the Simpson engine. It is a 2.6 L, 2,587 cm2, (157.9 cu·in) three-cylinder turbocharged intercooled diesel engine with 93.0 mm (3.66 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 66 PS (48.5 kW; 65.0 HP) at 2,000 rpm of output power.

The MF 2606H is equipped with power steering, wet disc brakes, two-post folding ROPS and 54.9 liters (14.5 US gal.; 12.1 Imp. gal) fuel tank.

Following attachments are available for the Massey Ferguson 2606H utility tractor:

  • Massey Ferguson L135E loader
  • Massey Ferguson 911X loader

Massey Ferguson 2606H Specifications

General Specifications
Model Massey Ferguson 2606H
Length 2WD: 3,500 mm (137.8 in)
4WD: 3,530 mm (139 in)
Width 1,770 mm (69.7 in)
Height 2,380 mm (93.7 in)
Wheel base 2WD: 2,040 mm (80.3 in)
4WD: 2,070 mm (81.5 in)
Weight
Fuel tank capacity 54.9 liters (14.5 US gal.; 12.1 Imp. gal)
Battery 12V
Cabin type Two-post folding ROPS
Engine
Engine model Simpson
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 2.6 L, 2,587 cm2, (157.9 cu·in)
Bore and stroke 93.0 mm X 127.0 mm (3.66 in X 5 in)
Horsepower 66 PS (48.5 kW; 65.0 HP) at 2,000 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Final drive Outboard planetary
Differential lock Mechanical rear
Transmission model
Transmission type Sync shuttle
Gears 8 forward and 8 reverse
Tires
Front tires Ag: 7.5×16 (2WD), 9.5×24 (4WD)
Rear tires Ag: 14.9×28
Three-Point Hitch
Category II/I
Control type
Lift capacity (at 610mm/ 24 in) 1250 kg (2756 lbs)
PTO (Power take-off shaft)
Rear PTO type Live (2WD) or independent (4WD)
Rear PTO speed 540 (1.375)
Hydraulic system
Hydraulic type Open center
Valves 2
Pump flow 10.6 gpm (40.1 lpm)
Total flow 15.7 gpm (59.4 lpm)
