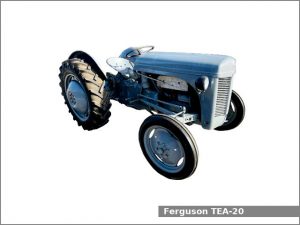

Ferguson TEA-20

Ferguson TEA-20The Ferguson TEA20 is a 2WD utility tractor manufactured by Ferguson in Coventry, England from 1948 to 1956.

The Ferguson TEA-20 is equipped with one of two engines: a 1.9 L (112.9 cu·in) four-cylinder gasoline engine or a 2.1 L (127.4 cu·in) four-cylinder gasoline engine and a unsynchronized gear transmission with 4 forward and 1 reverse gears.

The Ferguson TEA-20 used manual steering, differential mechanical shoe brakes, open operator station and 30.3 liters (8 US gal.; 6.7 Imp. gal) fuel tank.

The tractor could be equipped with the following engines:

  • Standard. It is a 1.9 L, 1,850 cm2, (112.9 cu·in) four-cylinder natural aspirated gasoline engine with 80.0 mm (3.15 in) of the cylinder bore and 92.0 mm (3.62 in) of the piston stroke. The compression ratio rating is 5.77:1. This engine produced 24.2 PS (17.8 kW; 23.9 HP) at 2,000 rpm of belt output power.
  • Standard. It is a 2.1 L, 2,088 cm2, (127.4 cu·in) four-cylinder natural aspirated gasoline engine. The cylinder bore is 85.0 mm (3.35 in) and the piston stroke is 92.0 mm (3.62 in). The compression ratio rating is 6.0:1. This engine produced 28.6 PS (21.0 kW; 28.2 HP) at 2,000 rpm of belt output power.

Ferguson TEA-20 Specifications

General Specifications
Model Ferguson TEA-20
Length 2,920 mm (115 in)
Width 1,620 mm (63.8 in)
Height 1,320 mm (52 in)
Wheel base 1,770 mm (69.7 in)
Ground clearance 330 mm (13 in)
Weight 1,135 kg (2,502 lbs)
Fuel tank capacity 30.3 liters (8 US gal.; 6.7 Imp. gal)
Battery
Cabin type Open operator station
Engine
Engine model Standard
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 1.9 L, 1,850 cm2, (112.9 cu·in)
Bore and stroke 80.0 mm X 92.0 mm (3.15 in X 3.62 in)
Compression ratio 5.77:1
Horsepower 24.2 PS (17.8 kW; 23.9 HP) at 2,000 rpm
Starter Electric
Oil capacity: 5.7 L (6 US. qt, 5 Imp. qt.)
Engine
Engine model Standard
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 2.1 L, 2,088 cm2, (127.4 cu·in)
Bore and stroke 85.0 mm X 92.0 mm (3.35 in X 3.62 in)
Compression ratio 6.0:1
Horsepower 28.6 PS (21.0 kW; 28.2 HP) at 2,000 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Differential mechanical shoe
Transmission model
Transmission type Unsynchronized gear
Gears 4 forward and 1 reverse
Speed Forward: 21.3 kmh (13.2 mph) Reverse: 6.3 kmh (3.9 mph)
Tires
Front tires Ag: 4×19
Rear tires Ag: 10×28
