Ferguson TO-20

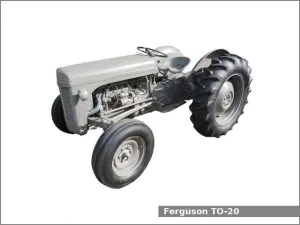

Ferguson TO-20The Ferguson TO20 is a 2WD utility tractor manufactured by Ferguson in Detroit, Michigan, USA from 1948 to 1951. The Ferguson TO20 is equipped with a 2.0 L (120.0 cu·in) four-cylinder gasoline engine and a constant mesh transmission with 4 forward and 1 reverse gears.

The Ferguson TO-20 utility tractor used the Continental Z-120 engine. It is a 2.0 L, 1,966 cm2, (120.0 cu·in) four-cylinder natural aspirated gasoline engine with 81.0 mm (3.19 in) of the cylinder bore and 95.0 mm (3.74 in) of the piston stroke. The compression ratio rating is 6.1:1. This engine produced 20.9 PS (15.4 kW; 20.7 HP) at 2,200 rpm of drawbar (tested) output power.

The Ferguson TO-20 is equipped with manual steering, differential mechanical expanding shoe brakes, open operator station and 37.9 liters (10 US gal.; 8.3 Imp. gal) fuel tank.

Ferguson TO-20 Specifications

General Specifications
Model Ferguson TO-20
Length 2,920 mm (115 in)
Width 1,620 mm (63.8 in)
Height 1,320 mm (52 in)
Wheel base 1,770 mm (69.7 in)
Ground clearance 330 mm (13 in)
Weight 1,251 kg (2,758 lbs)
Fuel tank capacity 37.9 liters (10 US gal.; 8.3 Imp. gal)
Battery 6V
Cabin type Open operator station
Engine
Engine model Continental Z-120
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 2.0 L, 1,966 cm2, (120.0 cu·in)
Bore and stroke 81.0 mm X 95.0 mm (3.19 in X 3.74 in)
Compression ratio 6.1:1
Horsepower 20.9 PS (15.4 kW; 20.7 HP) at 2,200 rpm
Torque 119.3 N·m (12.2 kg·m, 87.9 ft·lb) at 1,200 rpm
Starter Electric
Oil capacity: 5.7 L (6 US. qt, 5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Differential mechanical expanding shoe
Transmission model –
Transmission type Constant mesh
Gears 4 forward and 1 reverse
Transmission oil capacity 17.0 L (4.5 US. gal, 3.7 Imp. gal.)
Tires
Front tires Ag: 4×19
Rear tires Ag: 10×28
PTO (Power take-off shaft)
Rear PTO type Transmission
Rear PTO speed 540 rpm
