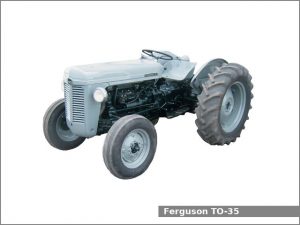

Ferguson TO-35

Ferguson TO-35The Ferguson TO35 is a 2WD utility tractor manufactured by Ferguson in Detroit, Michigan, USA from 1954 to 1960.

The Ferguson TO-35 is equipped with one of two engines: a 2.2 L (134.0 cu·in) four-cylinder gasoline engine or a 2.3 L (137.8 cu·in) four-cylinder diesel engine and a unsynchronized gear transmission with 6 forward and 2 reverse gears.

The Ferguson TO35 used with manual steering, differential mechanical expanding shoe brakes, an open operator station and 37.9 liters (10 US gal.; 8.3 Imp. gal) fuel tank for diesel fuel or 53.0 liters (14 US gal, 11.7 Imp. gal) for gasoline.

The tractor could be equipped with the following engines:

  • Continental Z-134. It is a 2.2 L, 2,196 cm2, (134.0 cu·in) four-cylinder natural aspirated gasoline engine with 84.0 mm (3.31 in) of the cylinder bore and 98.0 mm (3.86 in) of the piston stroke. The compression ratio rating is 6.6:1.
  • Standard Diesel Company 23C. It is a 2.3 L, 2,258 cm2, (137.8 cu·in) four-cylinder natural aspirated diesel engine. The cylinder bore is 84.0 mm (3.31 in) and the piston stroke is 102.0 mm (4.02 in). The compression ratio rating is 20.0:1.

Ferguson TO-35 Specifications

General Specifications
Model Ferguson TO-35
Length 2,970 mm (116.9 in)
Width 1,610 mm (63.4 in)
Height 1,440 mm (56.7 in)
Wheel base 1,820 mm (71.7 in)
Ground clearance 340 mm (13.4 in)
Weight (operating) 1,450 kg (3,197 lbs)
Fuel tank capacity Diesel: 37.9 liters (10 US gal.; 8.3 Imp. gal)
Gasoline: 53.0 liters (14 US gal.; 11.7 Imp. gal)
Battery 6v, one for gasoline, two for diessel
Cabin type Open operator station
Engine
Engine model Continental Z-134
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 2.2 L, 2,196 cm2, (134.0 cu·in)
Bore and stroke 84.0 mm X 98.0 mm (3.31 in X 3.86 in)
Compression ratio 6.6:1
Horsepower
Starter Electric
Coolant capacity: 9.5 L (10 US. qt, 8.4 Imp. qt.)
Engine
Engine model Standard Diesel Company 23C
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.3 L, 2,258 cm2, (137.8 cu·in)
Bore and stroke 84.0 mm X 102.0 mm (3.31 in X 4.02 in)
Compression ratio 20.0:1
Horsepower
Starter Electric
Oil capacity: 7.1 L (7.5 US. qt, 6.2 Imp. qt.)
Coolant capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Differential mechanical expanding shoe
Transmission model Dual Range
Transmission type Unsynchronized gear
Gears 6 forward and 2 reverse
Speed Forward: 23.5 kmh (14.6 mph) Reverse: 11.4 kmh (7.1 mph)
Transmission oil capacity 30.3 L (8 US. gal, 6.7 Imp. gal.)
Tires
Front tires Ag: 6.00-16
Rear tires Ag: 11-28
PTO (Power take-off shaft)
Rear PTO type Transmission or live (option)
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type
Hydraulic capacity 30.3 L (8 US. gal, 6.7 Imp. gal.)
Pressure 2500 psi (172.4 bar)
Valves 0 to 2
