John Deere 820 (1968-1973)

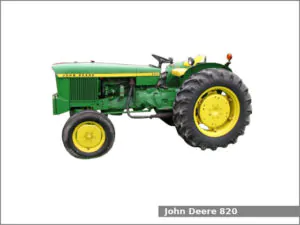

John Deere 820 (1968-1973)The John Deere 820 is a 2WD utility tractor manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 1968 to 1973. The John Deere 820 is equipped with a 2.5 L (151.9 cu·in) three-cylinder diesel engine and one of two transmissions: a sliding gear transmission with 7 forward and 1 reverse gears or a collar shift transmission with 8 forward and 4 reverse gears.

The JD 820 utility tractor used the John Deere diesel engine. It is a 2.5 L, 2,489 cm2, (151.9 cu·in) three-cylinder natural aspirated diesel engine with 98.0 mm (3.86 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 16.7:1. This engine produced 32.5 PS (23.9 kW; 32.0 HP) at 2,100 rpm of output power.

Following attachments are available for the John Deere 820 utility tractor:

  • Front-mount John Deere 523: 1,820 mm (72 in) blade
  • John Deere 37 loader
  • John Deere 165 backhoe

John Deere 820 Specifications

General Specifications
Model John Deere 820
Length 3,420 mm (134.6 in)
Width 2,050 mm (80.7 in)
Height 1,990 mm (78.3 in)
Wheel base 1,880 mm (74 in)
Fuel tank capacity 62.5 liters (16.5 US gal.; 13.7 Imp. gal)
Battery Two 12V, 55Ah
Cabin type Open operator station or ROPS (optional)
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 2.5 L, 2,489 cm2, (151.9 cu·in)
Bore and stroke 98.0 mm X 110.0 mm (3.86 in X 4.33 in)
Compression ratio 16.7:1
Horsepower 32.5 PS (23.9 kW; 32.0 HP) at 2,100 rpm
Starter Electric
Oil capacity: 6.2 L (6.6 US. qt, 5.5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type
Differential lock Mechanical rear
Transmission model
Transmission type Sliding gear
Gears 7 forward and 1 reverse
Transmission model
Transmission type Collar shift
Gears 8 forward and 4 reverse
Front tires Ag: 5.50-16, 6.00-16
Lawn/turf: 27/9.5-15, 23/10.5-12
Rear tires Ag: 12.2-28, 13.6-28
Lawn/turf: 16.9-24, 16.5L-16
Three-Point Hitch
Category I
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type Live
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 37.9 L (10 US. gal, 8.3 Imp. gal.)
