John Deere 5095M

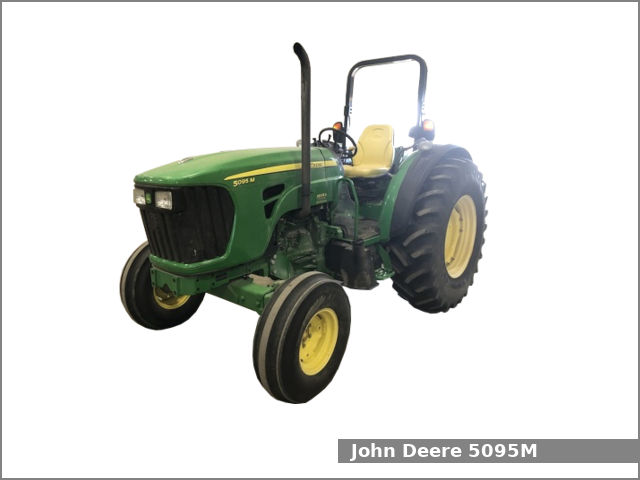

John Deere 5095MThe John Deere 5095M is a 2WD/4WD utility tractor from the 5M series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 2008 to 2011. The John Deere 5095M is equipped with a 4.5 L (276.0 cu·in) four-cylinder diesel engine and one of four transmission variants.

The JD 5095M utility tractor used the John Deere PowerTech M4045 engine. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 96.3 PS (70.8 kW; 95.0 HP) at 2,200 rpm of output power.
The John Deere 5095M is equipped with hydrostatic power steering, hydraulic wet disc brakes, foldable ROPS, optional deluxe ROPS or Cab and 114.7 liters (30.3 US gal.; 25.2 Imp. gal) fuel tank for ROPS version or 154.0 liters (40.7 US gal, 33.9 Imp. gal) for the cab version.

John Deere 5095M Specifications

General Specifications
ModelJohn Deere 5095M
Wheel base2,170 mm (85.4 in)
Ground clearance (front axle) 2WD: 450 mm (17.7 in)
4WD: 470 mm (18.5 in)
Weight (operating) 2WD ROPS: 2,989 kg (6,590 lbs)
2WD deluxe ROPS: 3,175 kg (7,000 lbs)
4WD Cab: 3,515 kg (7,750 lbs)
4WD ROPS: 3,175 kg (7,000 lbs)
4WD deluxe ROPS: 3,356 kg (7,400 lbs)
Fuel tank capacity ROPS: 114.7 liters (30.3 US gal.; 25.2 Imp. gal)
Cab: 154.0 liters (40.7 US gal.; 33.9 Imp. gal)
Battery12V, CCA 925A
Cabin typeFoldable ROPS. Optional deluxe ROPS or Cab
Engine modelJohn Deere PowerTech M4045
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke106.0 mm X 127.0 mm (4.17 in X 5 in)
Horsepower96.3 PS (70.8 kW; 95.0 HP) at 2,200 rpm
Torque504.4 N·m (51.4 kg·m, 371.7 ft·lb) at 1,600 rpm
Oil capacity:8.3 L (8.8 US. qt, 7.3 Imp. qt.)
Coolant capacity:11.4 L (12 US. qt, 10 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesHydraulic wet disc
Transmission modelSyncReverser
Transmission typePartially synchronized
Gears16 forward and 16 reverse
Speed Forward: 31.4 kmh (19.5 mph) Reverse: 35.0 kmh (21.8 mph)
Transmission modelSyncShuttle Plus
Transmission typePartially synchronized
Gears12 forward and 4 reverse
Speed Forward: 29.0 kmh (18 mph) Reverse: 19.3 kmh (12 mph)
Transmission modelPowrReverser
Transmission typePartially synchronized with power shuttle
Gears16 forward and 16 reverse
Speed Forward: 31.5 kmh (19.6 mph) Reverse: 35.0 kmh (21.8 mph)
Transmission modelPowrReverser Plus
Transmission typePartially synchronized with power shuttle
Gears 32 forward and 16 reverse
Front tires Ag: 11L-15 (2WD), 12.4R24 (4WD)
Lawn/turf: 27/12LL-15 (2WD), 12LL-16 (4WD)
Rear tires Ag: 480/80R30
Lawn/turf: 22.5LL-16.1, 23.1-26
Three-Point Hitch
Control type
Lift capacity (at 610 mm/24 in)1,630 kg (3,594 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent with electro-hydraulic clutch
Rear PTO speed540/540E or 540/540E/1000 (optional)
Hydraulic system
Hydraulic type
Hydraulic capacity11.9 L (3.1 US. gal, 2.6 Imp. gal.)
Pressure2828 psi (195 bar)
Valves Mid: 0, 2 or 3
Rear: 0, 2 or 3
Pump flow18.4 gpm (69.7 lpm)
Steering flow6.3 gpm (23.8 lpm)
Total flow24.7 gpm (93.5 lpm)
